True RMS Multimeter VC505

True RMS Multimeter VC505; Conrad Electronic (ID = 1633994) Equipment True RMS Multimeter VC505; Conrad Electronic (ID = 1633991) Equipment
True RMS Multimeter VC505; Conrad Electronic (ID = 1633992) Equipment True RMS Multimeter VC505; Conrad Electronic (ID = 1633997) Equipment
True RMS Multimeter VC505; Conrad Electronic (ID = 1634000) Equipment True RMS Multimeter VC505; Conrad Electronic (ID = 1634001) Equipment
True RMS Multimeter VC505; Conrad Electronic (ID = 1634002) Equipment True RMS Multimeter VC505; Conrad Electronic (ID = 1634017) Equipment
Use red slider bar for more.
True RMS Multimeter VC505; Conrad Electronic (ID = 1633994) Equipment

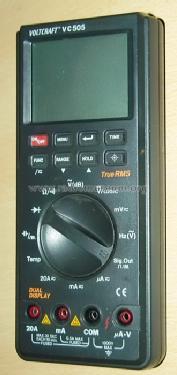

Conrad Electronic: True RMS Multimeter VC505 [Equipment] ID = 1633994 331x700
Select picture or schematic to display from thumbnails on the right and click for download.
For model True RMS Multimeter VC505, Conrad Electronic (Voltcraft), Radio-Conrad, Conrad & Co; Berlin, Hirschau

Country:  Germany
Manufacturer / Brand:  Conrad Electronic (Voltcraft), Radio-Conrad, Conrad & Co; Berlin, Hirschau
Brand

Voltcraft
Year: 1995 ? Category: Service- or Lab Equipment
Semiconductors (the count is only for transistors) Semiconductors present.
Wave bands - without
Details
Power type and voltage Dry Batteries / 1 x 9 Volt
Loudspeaker - - No sound reproduction output.
Power out
from Radiomuseum.org Model: True RMS Multimeter VC505 - Conrad Electronic Voltcraft,
Material Plastics (no bakelite or catalin)
Shape Very small Portable or Pocket-Set (Handheld) < 8 inch.
Dimensions (WHD) 196 x 85 x 35 mm / 7.7 x 3.3 x 1.4 inch
Notes

RMS Digital Multimeter VC505 mit 3 3/4 Digit-Anzeige.

Besonderheiten:
3 3/4 stelliges LCD-Doppeldisplay mit Balken-Azeige/Bargraph, echte effeltivwert-Messumg für Sinusförmige Signale, automatische und manuelle Bereichswahl, mit menügeführter Bedienung.
Auto Power off , und zuschaltbare grüne Hintergrundbeleuchtung mit automatischer Abschaltung; Tongenerator für Dioden/Logiktest und NF-Messung.

NF-Generator/Augang  2, 4, 8, KHz,  genau  2040, 4080, 8160 Hz, Rechteck  50/50 %,
Das Gerät bietet Kapazitäts-, Induktivitäts-, Temperatur- und dB-Messung sowie alle Funktionen eines normalen Multimeters,

Meßbereiche und Genauigkeit:
DCmV 0,3%, DCV max. 1000 V 0,5%,
ACmV 1%, ACV max. 750 V 1,5%,
DCµA 1%, DCmA max 400 mA 1%, DC 20A 1%,
ACµA 1,5%, ACmA max. 400 mA 1,5%, AC 20 A 1,5%,
Widerstand 400 Ω - 400 kΩ 0,5%, 4 MΩ - 40 MΩ 1%,
Capazität max. 100 µF, Aulösung 0,01µF 3%,
Induktivität max. 100 H, Auflösung 0,01H  10%,
Temperatur max. 1200 Grad C bei 1 Grad Auflösung,
Frequenz  bis 10 MHz  0,01 %.

Net weight (2.2 lb = 1 kg) 0.420 kg / 0 lb 14.8 oz (0.925 lb)
Mentioned in - - Manufacturers Literature (Original Handbuch/Conrad Katalog)

Model page created by Reinhard Keins. See "Data change" for further contributors.
