Voltcraft BK127C

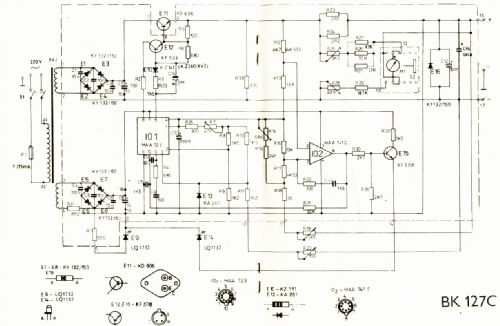

Voltcraft BK127C; Conrad Electronic (ID = 2346843) Power-S
Voltcraft BK127C; Conrad Electronic (ID = 1500175) Power-S Voltcraft BK127C; Conrad Electronic (ID = 1500176) Power-S
Use red slider bar for more.
Voltcraft BK127C; Conrad Electronic (ID = 1500175) Power-S
Conrad Electronic: Voltcraft BK127C [Power-S] ID = 1500175 724x452
Select picture or schematic to display from thumbnails on the right and click for download.
For model Voltcraft BK127C, Conrad Electronic (Voltcraft), Radio-Conrad, Conrad & Co; Berlin, Hirschau

Country:  Germany
Manufacturer / Brand:  Conrad Electronic (Voltcraft), Radio-Conrad, Conrad & Co; Berlin, Hirschau
Brand

Voltcraft
Year: 1975 ?? Category: Power supply/conditioner or battery or charger
Semiconductors (the count is only for transistors) Semiconductors present.
Wave bands - without
Details
Power type and voltage Alternating Current supply (AC) / 220 Volt
Loudspeaker - - No sound reproduction output.
Power out
from Radiomuseum.org Model: Voltcraft BK127C - Conrad Electronic Voltcraft,
Material Metal case
Shape Tablemodel, Mantel/Midget/Compact up to 14" width, but not a Portable (See power data. Sometimes with handle but for mains only).
Dimensions (WHD) 175 x 95 x 220 mm / 6.9 x 3.7 x 8.7 inch
Notes

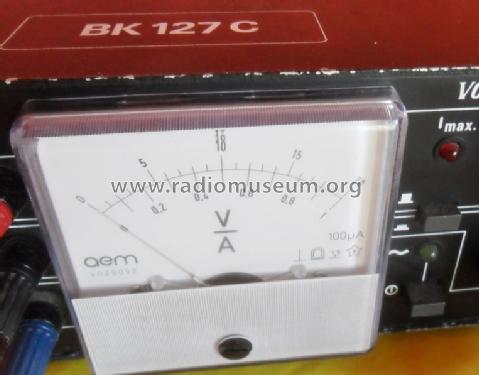

Netzgerät für Gleichstromspeisung. Spannung: 0...20V, Strom: 0...1A. Messgerät umschaltbar für Spannungs- und Strommessung. Netzspannungsanzeige und Anzeige für Gleichstrom Imax. durch LED.

Net weight (2.2 lb = 1 kg) 2.5 kg / 5 lb 8.1 oz (5.507 lb)

Model page created by Oskar Elm. See "Data change" for further contributors.
