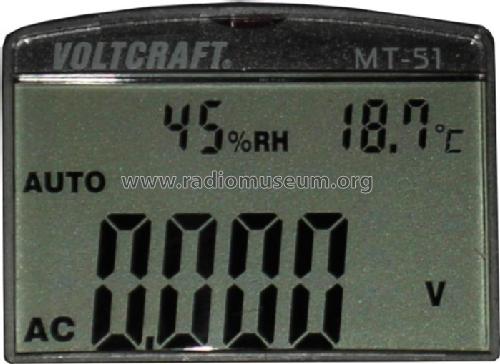

Voltcraft Multitester MT51

Voltcraft Multitester MT51; Conrad Electronic (ID = 935324) Equipment Voltcraft Multitester MT51; Conrad Electronic (ID = 935325) Equipment
Voltcraft Multitester MT51; Conrad Electronic (ID = 935326) Equipment Voltcraft Multitester MT51; Conrad Electronic (ID = 935327) Equipment
Voltcraft Multitester MT51; Conrad Electronic (ID = 935329) Equipment Voltcraft Multitester MT51; Conrad Electronic (ID = 935330) Equipment
Use red slider bar for more.
Voltcraft Multitester MT51; Conrad Electronic (ID = 935324) Equipment
Conrad Electronic: Voltcraft Multitester MT51 [Equipment] ID = 935324 440x812
Select picture or schematic to display from thumbnails on the right and click for download.
For model Voltcraft Multitester MT51, Conrad Electronic (Voltcraft), Radio-Conrad, Conrad & Co; Berlin, Hirschau

Country:  Germany
Manufacturer / Brand:  Conrad Electronic (Voltcraft), Radio-Conrad, Conrad & Co; Berlin, Hirschau
Brand

Voltcraft
Year: 2008 Category: Service- or Lab Equipment
Semiconductors (the count is only for transistors) Semiconductors present.
Wave bands - without
Details
Power type and voltage Batteries / addl. power jack / 9 Volt
Loudspeaker - - No sound reproduction output.
Power out
from Radiomuseum.org Model: Voltcraft Multitester MT51 - Conrad Electronic Voltcraft,
Material Modern plastics (no Bakelite or Catalin)
Shape Very small Portable or Pocket-Set (Handheld) < 8 inch.
Dimensions (WHD) 80 x 50 x 170 mm / 3.1 x 2 x 6.7 inch
Notes Spannung = ~: 400 mV, 4V, 40V, 100V, 250V;
Stromstärke = ~: 400 µA, 4000 µA, 400 mA, 10 A;
Widerstand: 400 Ohm, 4 kOhm, 40 kOhm, 4 MOhm, 40MOhm;
Kapazität: 5 nF, 50 nF, 500 nF, 5 µF, 50 µF, 100 µF;
Frequenz: 5 Hz, 50 Hz, 500 Hz, 5 kHz, 50 kHz, 500 kHz, 10 MHz;
Schallpegel: 35 dB - 100 dB;
Beleuchtungsstärke: 0 - 400 Lux, 400 Lux - 40000 Lux;
Temperatur: -20 °C - 400 °C, -20 °C - 1300 °C;
Relative Luftfeuchtigkeit: 33 % - 99 %;
Durchgangsprüfung.
Net weight (2.2 lb = 1 kg) 0.340 kg / 0 lb 12 oz (0.749 lb)
Price in first year of sale 49.00 EUR
Source of data - - Manufacturers Literature

Model page created by Karlheinz Gützlaff. See "Data change" for further contributors.
