- Country
- Sweden
- Manufacturer / Brand
- Stern & Stern (Concerton / Conserton), S&S; Stockholm
- Year
- 1952
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 145581
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 4
- Main principle
- Superheterodyne (common); ZF/IF 470 kHz
- Wave bands
- Broadcast, Long Wave and Short Wave.
- Power type and voltage
- Line / Batteries (any type) / AC/DC 115; 130; 220 / DC 4,5 & 90 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Material
- Leather / canvas / plastic - over other material
- from Radiomuseum.org
- Model: UB513 - Stern & Stern Concerton /
- Shape
- Portable set > 8 inch (also usable without mains)
- Dimensions (WHD)
- 380 x 270 x 150 mm / 15 x 10.6 x 5.9 inch
- Notes
- Avaliable in green and red. Price without batteries.
- Net weight (2.2 lb = 1 kg)
- 5.3 kg / 11 lb 10.8 oz (11.674 lb)
- Price in first year of sale
- 314.00 SEK
- Mentioned in

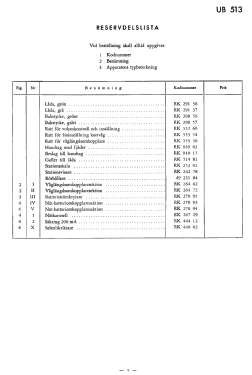

- - - Manufacturers Literature (Stern & Stern service data 1952)
