A2; Admiral brand (ID = 1764815) Radio

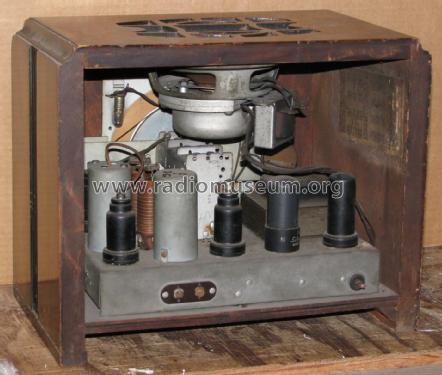

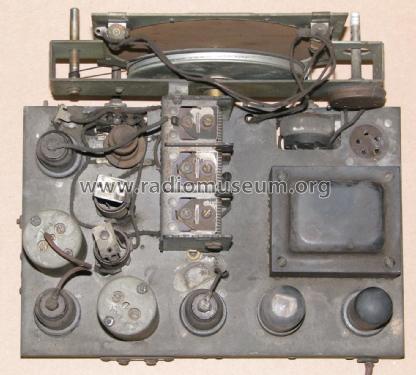

Admiral brand: A2 [Radio] ID = 1764815 1400x1227
Select picture or schematic to display from thumbnails on the right and click for download.
For model A2, Admiral (brand) Continental Radio & Television Co.; Chicago, IL

Country:  United States of America (USA)
Manufacturer / Brand:  Admiral (brand) Continental Radio & Television Co.; Chicago, IL
alternative name

Continental Radio & TV
Year: 1936 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: 6A8 6K7 6Q7 6F6 5W4
Main principle Superheterodyne (common); ZF/IF 456 kHz
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast, Long Wave and Short Wave.
Details
Power type and voltage Alternating Current supply (AC) / 115 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 5.5 inch = 14 cm
Power out
from Radiomuseum.org Model: A2 - Admiral brand Continental
Material Wooden case
Shape Tablemodel without push buttons, Mantel/Midget/Compact up to 14
Dimensions (WHD) 13.3 x 10.7 x 9 inch / 338 x 272 x 229 mm
Net weight (2.2 lb = 1 kg) 17.6 lb (17 lb 9.6 oz) / 7.990 kg
External source of data Ernst Erb
Circuit diagram reference Rider's Perpetual, Volume 11 = ca. 1940 and before
