• Country
• United States of America (USA)

• Manufacturer / Brand
• Continental Merchandise Co. Inc. (CMC); New York, NY

• Year
• 1959 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 107430

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 6

• Semiconductors
• 2S52 2S45 2S53 2S54 2S56 2S56

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)

• Tuned circuits
• 5 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Dry Batteries / 1 x 9 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 2.25 inch = 5.7 cm

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

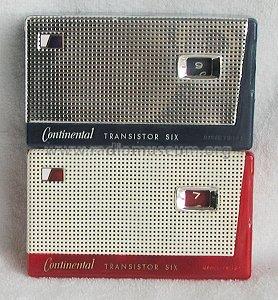

• Model: Transistor Six TR-182 - Continental Merchandise Co.

• Shape
• Very small Portable or Pocket-Set (Handheld) < 8 inch.

• Notes

• Continental Pocket AM Radio Model Transistor Six TR-182.
  Frequency Range 535 - 1605 kHz.
  Made in Japan.

  See also Japan Sharp Model TR-182.

• Literature/Schematics (1)
• Photofact Folder, Howard W. SAMS (Date 8-59, Set 453, Folder 12)

• Author
• Model page created by Peter Hoddow. See "Data change" for further contributors.

• Other Models

• Here you find 48 models, 43 with images and 19 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
  All listed radios etc. from Continental Merchandise Co. Inc. (CMC); New York, NY
