AW11 wireless record player

AW11 wireless record player; Admiral brand (ID = 462066) Ampl/Mixer
AW11 wireless record player; Admiral brand (ID = 1683300) Ampl/Mixer
Use red slider bar for more.
AW11 wireless record player; Admiral brand (ID = 1683300) Ampl/Mixer

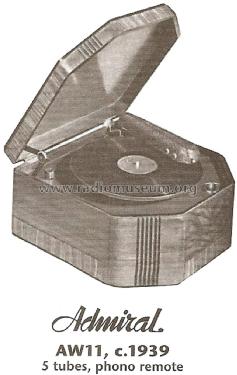

Admiral brand: AW11 wireless record player [Ampl/Mixer] ID = 1683300 880x1392
Select picture or schematic to display from thumbnails on the right and click for download.
For model AW11 wireless record player, Admiral (brand) Continental Radio & Television Co.; Chicago, IL:
Image courtesy of Mark V. Stein for Radiomuseum.org use only. From Table Top Radios Volume 4.

Country:  United States of America (USA)
Manufacturer / Brand:  Admiral (brand) Continental Radio & Television Co.; Chicago, IL
alternative name

Continental Radio & TV
Year: 1939 ? Category: Audio Amplifier or -mixer
Valves / Tubes 2: 6A7 25Z5
Wave bands - without
Details Record Player (perh.Changer)
Power type and voltage Alternating Current supply (AC) / 110-120 Volt
Loudspeaker - For headphones or amp.
Power out
from Radiomuseum.org Model: AW11 wireless record player - Admiral brand Continental
External source of data Ernst Erb
Circuit diagram reference Rider's Perpetual, Volume 10 = 1939 and before
Literature/Schematics (4) Table Top Radios Vol. 4 Stein 2003 (page 38.)
