• Country
• Argentina

• Manufacturer / Brand
• Exactom - Exacton (Corinth, Black Point); (¿dónde? where?)

• Year
• 1980 ??

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 252158

• Number of Transistors
• 3

• Semiconductors
• BF254 BF255 BF255 TBA820

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast and Short Wave (SW).

• Power type and voltage
• Line / Batteries (any type) / AC 220 / D: 4 x 1,5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4 inch = 10.2 cm

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

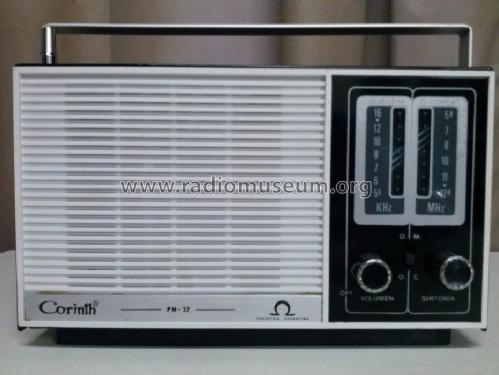

• Model: Corinth PM-32 - Exactom - Exacton Corinth,

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 270 x 160 x 100 mm / 10.6 x 6.3 x 3.9 inch

• Net weight (2.2 lb = 1 kg)
• 1.6 kg / 3 lb 8.4 oz (3.524 lb)

• Author
• Model page created by Jorge Juan Stark. See "Data change" for further contributors.

• Other Models

• Here you find 5 models, 4 with images and 0 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
  All listed radios etc. from Exactom - Exacton (Corinth, Black Point); (¿dónde? where?)
