Capacitor-Resistor Bridge BF-60

Capacitor-Resistor Bridge BF-60; Cornell-Dubilier (ID = 1507153) Equipment Capacitor-Resistor Bridge BF-60; Cornell-Dubilier (ID = 1507154) Equipment
Capacitor-Resistor Bridge BF-60; Cornell-Dubilier (ID = 1265237) Equipment Capacitor-Resistor Bridge BF-60; Cornell-Dubilier (ID = 229063) Equipment
Use red slider bar for more.
Capacitor-Resistor Bridge BF-60; Cornell-Dubilier (ID = 1507153) Equipment
Cornell-Dubilier: Capacitor-Resistor Bridge BF-60 [Equipment] ID = 1507153 933x702

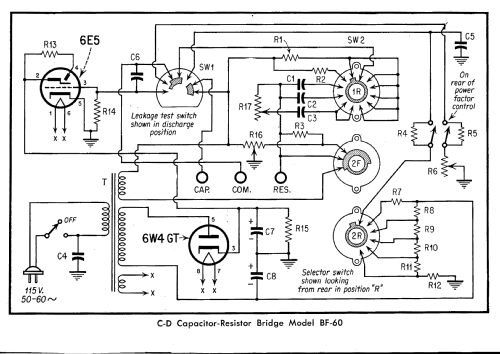

Select picture or schematic to display from thumbnails on the right and click for download.
For model Capacitor-Resistor Bridge BF-60, Cornell-Dubilier Electric (CDE); Seattle (WA):
The front of the Cornell Dubilier Capacitance-Resistance Bridge BF-60. This picture is courtesy of eBay seller ochy.

Country:  United States of America (USA)
Manufacturer / Brand:  Cornell-Dubilier Electric (CDE); Seattle (WA)
Brand

CDE
Year: 1954 Category: Service- or Lab Equipment
Wave bands - without
Details
Power type and voltage Alternating Current supply (AC) / 110-125 Volt
Loudspeaker - - No sound reproduction output.
Power out
from Radiomuseum.org Model: Capacitor-Resistor Bridge BF-60 - Cornell-Dubilier Electric CDE;
Material Metal case
Shape Tablemodel, Mantel/Midget/Compact up to 14" width, but not a Portable (See power data. Sometimes with handle but for mains only).
Dimensions (WHD) 10 x 7 x 5.5 inch / 254 x 178 x 140 mm
Notes Capacity ranges 10 mmf-.005mfd, .001-.5 mfd, .1-50 mfd, 20-1000 mfd.
Price in first year of sale 43.00 $
Literature/Schematics (1) Allied Radio Catalog Nº 150, 1956

Model page created by Vitor Oliveira. See "Data change" for further contributors.
