CR1310T
Cossor, A.C.; London
- Country
- Great Britain (UK)
- Manufacturer / Brand
- Cossor, A.C.; London
- Year
- 1963
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 103425
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- 6
- Main principle
- Superheterodyne (common); ZF/IF 470 kHz; 2 AF stage(s)
- Tuned circuits
- 5 AM circuit(s)
- Wave bands
- Broadcast (MW) and Long Wave.
- Power type and voltage
- Dry Batteries / 9 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Power out
- 0.5 W (unknown quality)
- Material
- Leather / canvas / plastic - over other material
- from Radiomuseum.org
- Model: CR1310T - Cossor, A.C.; London
- Shape
- Portable set > 8 inch (also usable without mains)
- Notes
- Blue leather-cloth case with moulded speaker grille. Fitted with aerial & earphone sockets. Battery type PP7. Price £11.15s.3d plus Tax.
- Price in first year of sale
- 12.00 GBP
- Circuit diagram reference
- Radio and TV Servicing books (R&TVS) book
- Mentioned in
- -- Original-techn. papers.
- Literature/Schematics (1)

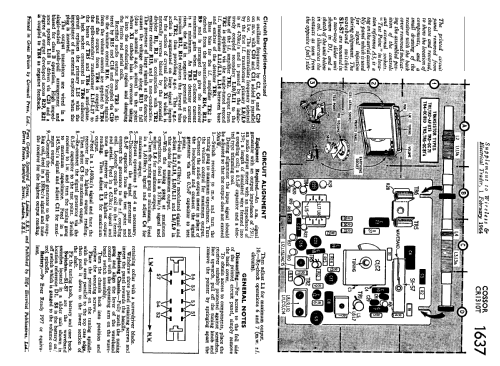

- Trader Sheet 1637
- Author
- Model page created by Peter Hoddow. See "Data change" for further contributors.
