• Year
  • 1966 ?
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 176624

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Transistors
  • 6
  • Main principle
  • Superheterodyne (common); ZF/IF 470 kHz; 2 AF stage(s)
  • Tuned circuits
  • 5 AM circuit(s)
  • Wave bands
  • Broadcast (MW) and Long Wave.
  • Power type and voltage
  • Dry Batteries / 9 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
  • Power out
  • 0.5 W (unknown quality)
  • from Radiomuseum.org
  • Model: CR1315T - Cossor, A.C.; London
  • Shape
  • Portable set > 8 inch (also usable without mains)
  • Dimensions (WHD)
  • 9.875 x 5.75 x 3 inch / 251 x 146 x 76 mm
  • Notes
  • Portable radio with MW bandspread, speaker 5 x 3 inches. Fitted with sockets for car aerial & earphone. Battery type PP7. Set made by Philips.
  • Net weight (2.2 lb = 1 kg)
  • 2.5 lb (2 lb 8 oz) / 1.135 kg
  • Source of data
  • -- Schematic
  • Circuit diagram reference

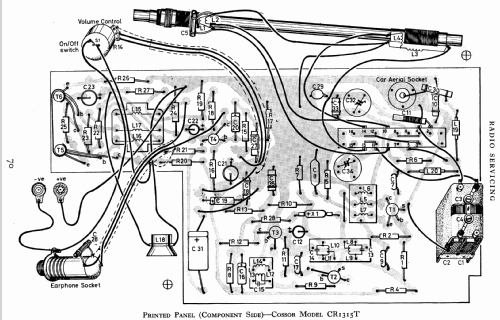

  • Radio and TV Servicing books (R&TVS) book
  • Literature/Schematics (1)
  • ERT Chart 1528
  • Author
  • Model page created by Keith Staines. See "Data change" for further contributors.
