• Year
  • 1946
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 159377

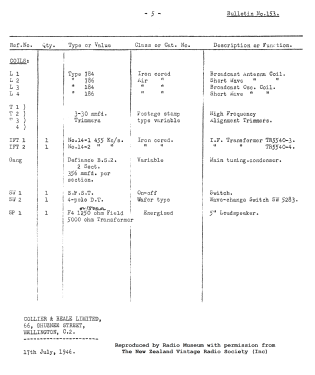

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Main principle
  • Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)
  • Tuned circuits
  • 6 AM circuit(s)
  • Wave bands
  • Broadcast and Short Wave (SW).
  • Power type and voltage
  • Alternating Current supply (AC) / 230 Volt
  • Loudspeaker
  • Permanent or electro-dynamic (moving coil), system not known yet. / Ø 5 inch = 12.7 cm
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: Cromwell Songster 526 - Cromwell, Gulbransen NZ,
  • Shape
  • Tablemodel, with any shape - general.
  • Dimensions (WHD)
  • 295 x 220 x 210 mm / 11.6 x 8.7 x 8.3 inch
  • Mentioned in
  • -- Original prospect or advert (Te Awamutu Courier 20 November 1946 Page 3)
  • Author
  • Model page created by a member from A. See "Data change" for further contributors.
