• Country
• New Zealand-Aotearoa

• Manufacturer / Brand
• Cromwell, Gulbransen (NZ), Pacemaker, (Brands) Clarke, H. W.; Wellington

• Year
• 1962

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 356098

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 0

• Valves / Tubes
• 6BE6 6BA6 6AV6 6AV6 EL84 EL84 EZ81

• Number of Transistors
• 7

• Semiconductors

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz; 4 AF stage(s)

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Details
• Changer (Record changer)

• Power type and voltage
• Alternating Current supply (AC) / 50Hz, 230 Volt

• Loudspeaker
• 3 Loudspeakers

• Material
• Wooden case

• from Radiomuseum.org

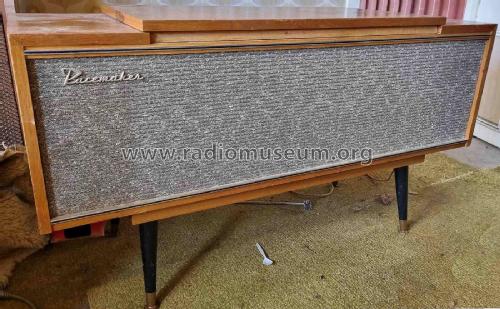

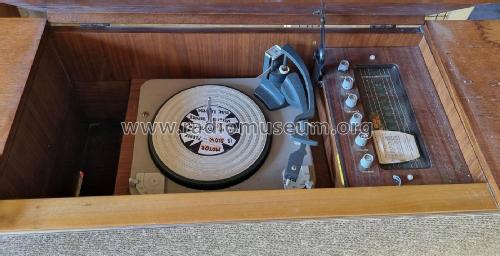

• Model: Pacemaker Patina Stereogram - Cromwell, Gulbransen NZ,

• Shape
• Console, Lowboy (legs < 50 %).

• Notes

• Pacemaker Patina Stereogram

  Luxurious listening, both radio and recordings. This is the Pacemaker "Patina" stereogram... built especially for those people who want luxurious listening of both radio and recordings. This advertisement cannot possibly tell you of all its desirable features any more than demonstrate its superb sound, But your Pacemaker dealer will gladly do both. The Patina' is the leader in the Pacemaker range.

• Mentioned in
• -- Original prospect or advert (Press 15 October 1963 Page 22)

• Author
• Model page created by Brian Stevens. See "Data change" for further contributors.
