• Country
• United States of America (USA)

• Manufacturer / Brand
• Crosley Radio Corp.; Cincinnati (OH)

• Year
• 1936

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 36173

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 9

• Valves / Tubes
• 6K7 6A8 6J7 6K7 6H6 6R7 6N6 6N6 5Z4

• Main principle
• Superhet with RF-stage; ZF/IF 450 kHz; 2 AF stage(s)

• Wave bands
• Broadcast, Short Wave(s) and Police.

• Power type and voltage
• Alternating Current supply (AC) / 110 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil)

• Power out
• 15 W (unknown quality)

• Material
• Wooden case

• from Radiomuseum.org

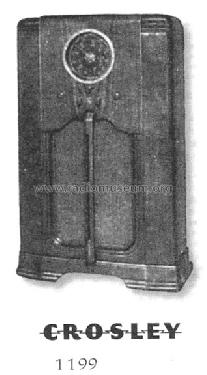

• Model: 1199 Ch= 1126 - Crosley Radio Corp.;

• Shape
• Console with any shape - in general

• Notes
• Neon-Tuning-Tube:W42410 - Auto-Expressionator-Tube:W41187

• External source of data
• Ernst Erb

• Source of data
• Pre-War Consoles

• Circuit diagram reference
• Rider's Perpetual, Volume 8 = 1937 and before
