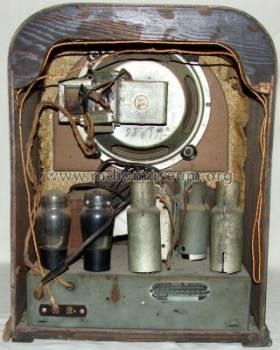

150 ; Crosley Radio Corp.; (ID = 377508) Radio 150 ; Crosley Radio Corp.; (ID = 377509) Radio

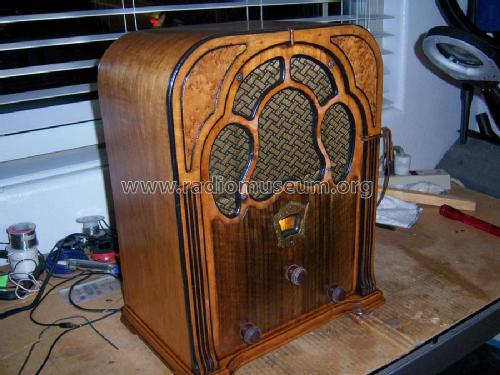

150 ; Crosley Radio Corp.; (ID = 377510) Radio 150 ; Crosley Radio Corp.; (ID = 1011291) Radio
150 ; Crosley Radio Corp.; (ID = 1345326) Radio
Use red slider bar for more.
150 ; Crosley Radio Corp.; (ID = 377504) Radio
Crosley Radio Corp.;: 150 [Radio] ID = 377504 302x375
Select picture or schematic to display from thumbnails on the right and click for download.
For model 150, Crosley Radio Corp.; Cincinnati (OH):
Copy from Ebay seller a56837

Country:  United States of America (USA)
Manufacturer / Brand:  Crosley Radio Corp.; Cincinnati (OH)
Year: 1932 perfect model Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: 58 57 58 55 42 80
Main principle Superhet with RF-stage; ZF/IF 181.5 kHz; 2 AF stage(s)
Tuned circuits 7 AM circuit(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage Alternating Current supply (AC) / 115 and models with 220 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
Power out
from Radiomuseum.org Model: 150 - Crosley Radio Corp.;
Material Wooden case
Shape Tablemodel, Tombstone = decorative upright, not cathedral but can have rounded edges.
Notes The crosley model 150 was made for different cycles and voltages - also for export. It was well known in Switzerland. This radio model can not be earlier than 1932, because of some tubes used.
External source of data E. Erb 3-907007-36-0
Circuit diagram reference Die «Thali Schemasammlung» führt das Modell.
