639M Ch= 639

639M Ch= 639; Crosley Radio Corp.; (ID = 262365) Radio

639M Ch= 639; Crosley Radio Corp.; (ID = 262367) Radio

639M Ch= 639; Crosley Radio Corp.; (ID = 262366) Radio
639M Ch= 639; Crosley Radio Corp.; (ID = 1360253) Radio 639M Ch= 639; Crosley Radio Corp.; (ID = 1360254) Radio
639M Ch= 639; Crosley Radio Corp.; (ID = 1360370) Radio
Use red slider bar for more.

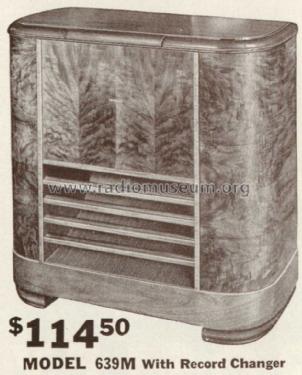

639M Ch= 639; Crosley Radio Corp.; (ID = 1360253) Radio
Crosley Radio Corp.;: 639M Ch= 639 [Radio] ID = 1360253 933x1158
Select picture or schematic to display from thumbnails on the right and click for download.
For model 639M Ch= 639, Crosley Radio Corp.; Cincinnati (OH):
Scanned from the Crosley Folder No. 2451B, Season 1939/40.

Country:  United States of America (USA)
Manufacturer / Brand:  Crosley Radio Corp.; Cincinnati (OH)
Year: 1939/1940 perfect model Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: 6A8G 6K7G 6Q7G 6P5G 6AC5G 5Y3G
Main principle Superheterodyne (common); ZF/IF 455 kHz; 3 AF stage(s)
Wave bands Broadcast only (MW).
Details Changer (Record changer)
Power type and voltage Alternating Current supply (AC) / 117 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
Power out 5 W (unknown quality)
from Radiomuseum.org Model: 639M Ch= 639 - Crosley Radio Corp.;
Material Wooden case
Shape Console with any shape - in general
Dimensions (WHD) 33 x 34 x 16.5 inch / 838 x 864 x 419 mm
Notes

Please look up common information here for this season.

Price in first year of sale 114.50 $
External source of data Ernst Erb
Source of data The Radio Collector's Directory and Price Guide 1921 - 1965

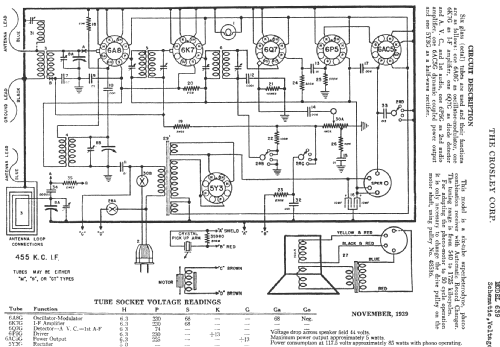

Circuit diagram reference Rider's Perpetual, Volume 11 = ca. 1940 and before
Literature/Schematics (3) Crosley Folder No. 2451B, Season 1939/40.
