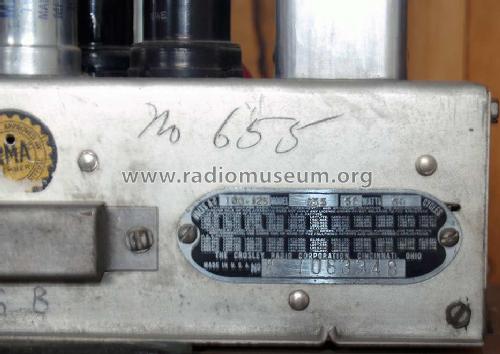

655M Olympia ; Crosley Radio Corp.; (ID = 1005165) Radio 655M Olympia ; Crosley Radio Corp.; (ID = 1005162) Radio
655M Olympia ; Crosley Radio Corp.; (ID = 1005167) Radio 655M Olympia ; Crosley Radio Corp.; (ID = 917276) Radio
655M Olympia ; Crosley Radio Corp.; (ID = 1005163) Radio
Use red slider bar for more.
655M Olympia ; Crosley Radio Corp.; (ID = 1005161) Radio
Crosley Radio Corp.;: 655M Olympia [Radio] ID = 1005161 589x933
Select picture or schematic to display from thumbnails on the right and click for download.
For model 655M Olympia, Crosley Radio Corp.; Cincinnati (OH):
By courtesy of guest Bob Rinaldi, Whittler, CA, USA.

Country:  United States of America (USA)
Manufacturer / Brand:  Crosley Radio Corp.; Cincinnati (OH)
Year: 1935/1936 perfect model Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: 6A8 6K7 6H6 6K7 6F6 5Z4
Main principle Superheterodyne (common); ZF/IF 450 kHz; 2 AF stage(s)
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast, Short Wave(s) and Police.
Details
Power type and voltage Alternating Current supply (AC) / 60 cycles 110 volts or 25 c. 110 v or 25 c. 220 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
Power out
from Radiomuseum.org Model: 655M Olympia - Crosley Radio Corp.;
Material Wooden case
Shape Console with any shape - in general
Dimensions (WHD) 20.75 x 36.375 x 11.25 inch / 527 x 924 x 286 mm
Notes This Crosley console radio model Olympia 655M uses the same schematic as the 655 Olympia tombstone model with the same escutcheon etc. And the Crosley model 615 Cruiser is an AC/DC model with the same cabinet - but other tubes.

For the 655 Olympia models and the Buccaneer 635 models there are 3 different transformers possible: 60 cycle 110 volt, 25 cycles 110 volt and 25 cycles 220 volt. Tuning ranges are 540 to 1700 kHz broadcast, 1.7 MHz to 5.2 MHz and 5.4 to 15.3 MHz. There may have been used two different sets of knobs: wooden knobs (according to a photo of Greg Armstrong at Crosleyradios.com), which can be wrong knobs, or 8 sided bakelite knobs which can be seen on the Crosley folder. See also the model Buccaneer 635 with the same cabinet but other tubes and other features.

See details about season 1935/36 here. For Crosley and many collectors it is 1936 models, but fact is season 1935/36.
Source of data Pre-War Consoles
Literature/Schematics (1) Rider's Perpetual, Volume 7 = 1936 and before (7-43 and 7-44 (Alignment, Chassis parts), date November 1935)
