66TW

• Country
• United States of America (USA)

• Manufacturer / Brand
• Crosley Radio Corp.; Cincinnati (OH)

• Year
• 1945/1946

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 36924

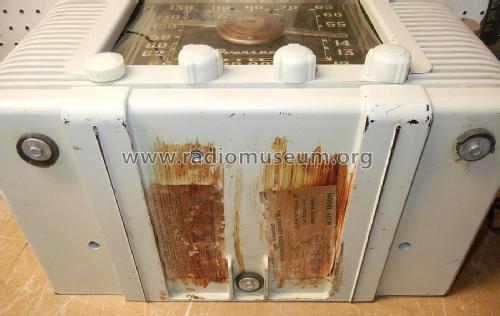

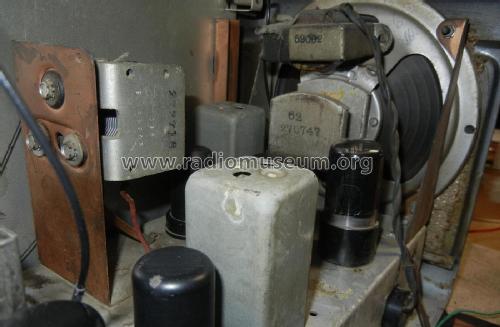

• Picture
• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes
• 6SK7GT 6SA7GT 6SK7GT 6SQ7 6V6GT 5Y3GT

• Main principle
• Superhet with RF-stage; ZF/IF 455 kHz; 2 AF stage(s)

• Wave bands
• Broadcast and Short Wave (SW).

• Power type and voltage
• Alternating Current supply (AC) / 110 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil)

• Power out
• 4.5 W (unknown quality)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: 66TW - Crosley Radio Corp.;

• Shape
• Tablemodel, with any shape - general.

• Notes
• Sams photofact folder 465-15 date 10-46 features the Crosley models 66TA, 66TW and 66TC (wood) as the same schematic. The difference is the color. In the book "Collector's guide to Antique Radios", 7th edition we found on page 67 "plastic" as material, but this is wrong: It is a bakelite model.

• External source of data
• Ernst Erb

• Source of data
• Collector's Guide to Antique Radios 4. Edition

• Circuit diagram reference
• Rider's Perpetual, Volume 15 = 1947 and before

• Literature/Schematics (1)
• Photofact Folder, Howard W. SAMS (Folder 465-15 date 10-46)
