• Country
• United States of America (USA)

• Manufacturer / Brand
• Crosley Radio Corp.; Cincinnati (OH)

• Year
• 1934

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 36985

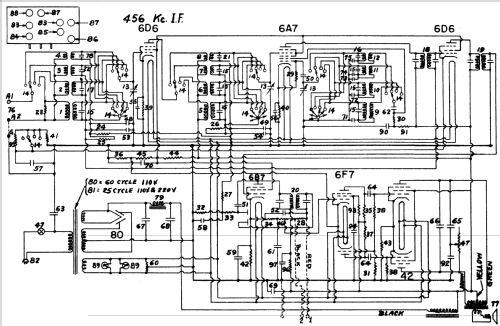

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 8

• Valves / Tubes
• 6D6 6A7 6D6 6B7 6F7 42 42 80

• Main principle
• Superhet with RF-stage; ZF/IF 456 kHz; 2 AF stage(s)

• Wave bands
• Broadcast plus more than 2 Short Wave bands.

• Power type and voltage
• Alternating Current supply (AC) / Either Transformer: 25 cycle, 110 to 220 or 60 cycle, 100 to 125 Volt

• Loudspeaker

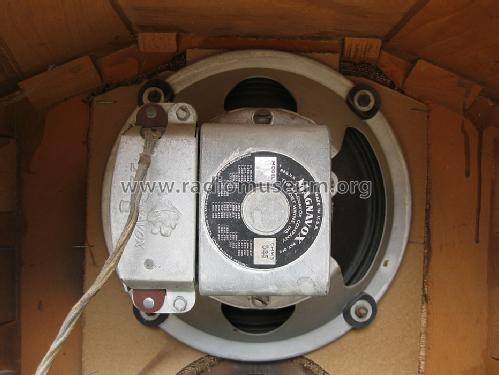

• Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 8 inch = 20.3 cm

• Material
• Wooden case

• from Radiomuseum.org
• Model: 80AW Ch= 8H1 [Table Model] - Crosley Radio Corp.;

• Shape

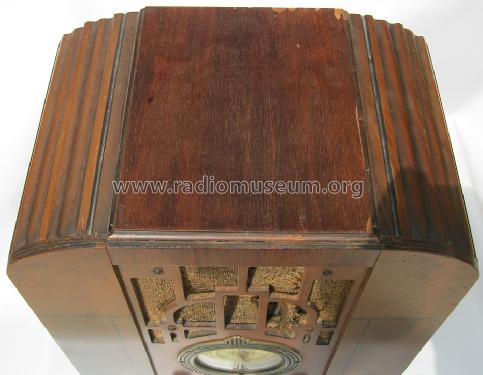

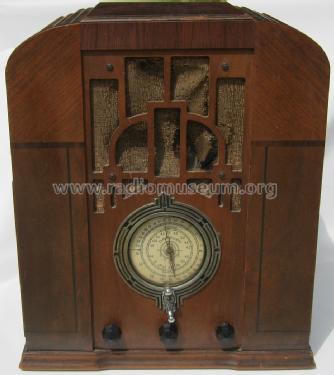

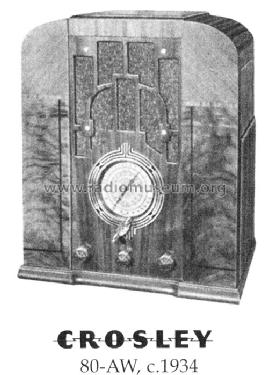

• Tablemodel, Tombstone = decorative upright, not cathedral but can have rounded edges.

• Dimensions (WHD)
• 16 x 18.5 x 10.25 inch / 406 x 470 x 260 mm

• Notes

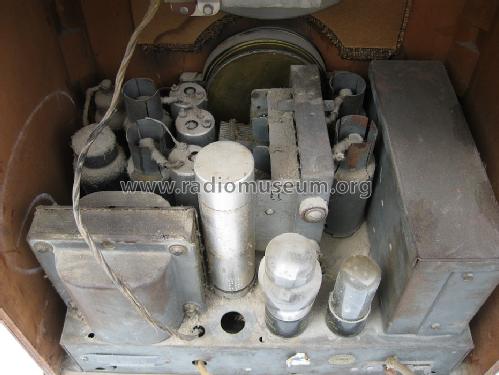

• The Crosley 80AW is an AC operated 8 tube BC and SW band receiver. This receiver uses chassis 8H1, which is also used in model 80AW Lowboy. This "Allwave Receiver" covers the band of 540 - 24000 kHz in 4 steps. Has 80 to 1 ratio-drive mechanism with special fishing reel type of tuning control.  Also has Air Plane type dial and push-pull output stage.

  Stein "Cathedral & Tombstone Radios" lists 6 tubes and two bands for this model.

• External source of data
• Ernst Erb

• Source of data
• The Radio Collector's Directory and Price Guide 1921 - 1965

• Circuit diagram reference
• Rider's Perpetual, Volume 5 = ca. 1934 and before

• Mentioned in
• Table Top Radios Vol. 4 Stein 2003

• Literature/Schematics (1)
• - - Manufacturers Literature (Crosley Sevice Supplement No. 91)

• Literature/Schematics (2)
• Crosley Radio Service Manual (Crosley Radio Service Manual 1943 and Earlier, Pages 21 to 22)

• Literature/Schematics (3)
• Rider's Perpetual, Volume 5 = ca. 1934 and before (Riders (Crosley) 5-43 to 5-46)

• Literature/Schematics (4)
• Cathedral & Tombstone Radios (page 82)
