• Country
• United States of America (USA)

• Manufacturer / Brand
• Crosley Radio Corp.; Cincinnati (OH)

• Year
• 1935

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 37032

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 9

• Valves / Tubes
• 6D6 6A7 76 6B7 76 42 42 42 5Z3

• Main principle
• Superhet with RF-stage; ZF/IF 450 kHz; 3 AF stage(s)

• Wave bands
• Broadcast, Long Wave and more than two Short Wave bands.

• Power type and voltage
• Alternating Current supply (AC) / 110 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil)

• Material
• Wooden case

• from Radiomuseum.org
• Model: Clipper 915 [Table model] - Crosley Radio Corp.;

• Shape
• Tablemodel, Tombstone = decorative upright, not cathedral but can have rounded edges.

• Notes
• 5 Wavebands: 150-400kHz; 540-1500kHz; 1500kHz-4MHz; 4-10MHz; 10-21MHz

• External source of data
• Ernst Erb

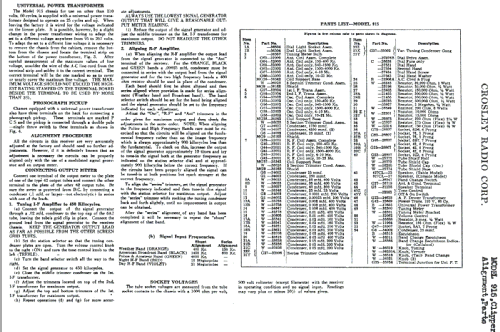

• Circuit diagram reference
• Rider's Perpetual, Volume 7 = 1936 and before

• Mentioned in
• Machine Age to Jet Age III

• Literature/Schematics (1)
• Table Top Radios Vol. 4 Stein 2003 (page 71.)
