• Year
  • 1937 ?
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 182749

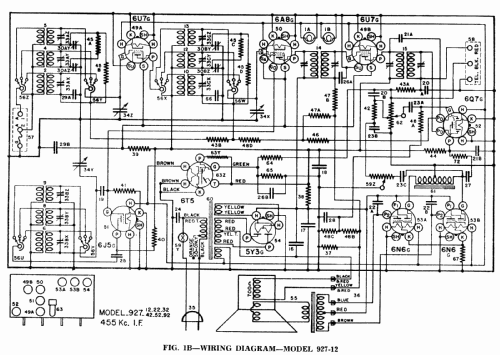

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 9
  • Main principle
  • Superhet with RF-stage; ZF/IF 455 kHz; 2 AF stage(s)
  • Tuned circuits
  • 7 AM circuit(s)
  • Wave bands
  • Broadcast plus 2 Short Wave bands.
  • Power type and voltage
  • Alternating Current supply (AC) / 95-130 / 190-260 Volt
  • Loudspeaker
  • Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
  • from Radiomuseum.org
  • Model: 927-12 - Crosley Radio Corp.;
  • Notes
  • SW1 10-24MHz, SW2 5.35-13MHz. Sets also supplied with universal transformers for supplies of 95-267 volts.
  • Source of data
  • -- Schematic
  • Author
  • Model page created by Keith Staines. See "Data change" for further contributors.
