9-214M (C9-214M)

Crosley Radio Corp.; Cincinnati (OH)

Data
Forum
Pictures
Collections

  • Year
  • 1946
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 37047

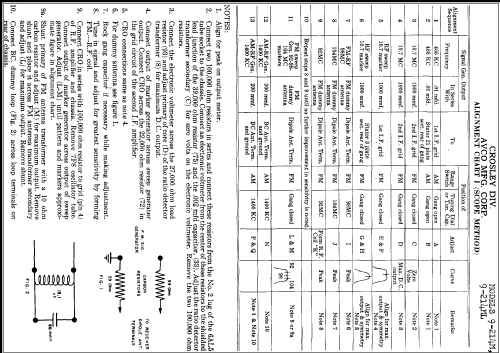

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 11
  • Main principle
  • Superhet with RF-stage; ZF/IF 455/10700 kHz; 2 AF stage(s)
  • Tuned circuits
  • 6 AM circuit(s)     9 FM circuit(s)
  • Wave bands
  • Broadcast (BC) and FM or UHF.
  • Details
  • Changer (Record changer)
  • Power type and voltage
  • Alternating Current supply (AC) / 105 - 125 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 9.5 inch = 24.1 cm
  • Power out
  • 7 W (unknown quality)
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: 9-214M - Crosley Radio Corp.;
  • Shape
  • Console, Lowboy (legs < 50 %).
  • Notes
  • The schematic documents show a Crosley model 9-214M and 9-214ML for the same schematic. The difference is: Model 9-214M uses model 700F automatic record changer (Part no. 144489, service sheet no. 364) and model 9-214ML uses model 700FLP automactic record changer (Part No. 145113, service bulletin no. 375). Both models have a Push Pull-Output for 7 watts maximum. The schematics have been published in 1949 but we have been told that it was on the market already in 1946 - as C9-214M. It is often the case that a model bears a prefix or suffix which is not mentioned in a schematic. Therefore we use here both type names.
  • External source of data
  • Ernst Erb
  • Circuit diagram reference
  • Rider's Perpetual, Volume 19 = 1949 and before
