Dual Fiver Sheraton Ch= 167 Early Production

Dual Fiver Sheraton Ch= 167; Crosley Radio Corp.; (ID = 1751248) Radio

Dual Fiver Sheraton Ch= 167; Crosley Radio Corp.; (ID = 1751249) Radio

Dual Fiver Sheraton Ch= 167; Crosley Radio Corp.; (ID = 1751250) Radio

Dual Fiver Sheraton Ch= 167; Crosley Radio Corp.; (ID = 1751251) Radio

Dual Fiver Sheraton Ch= 167; Crosley Radio Corp.; (ID = 1751252) Radio

Dual Fiver Sheraton Ch= 167; Crosley Radio Corp.; (ID = 1751253) Radio

Dual Fiver Sheraton Ch= 167; Crosley Radio Corp.; (ID = 1751254) Radio

Dual Fiver Sheraton Ch= 167; Crosley Radio Corp.; (ID = 1751255) Radio
Dual Fiver Sheraton Ch= 167; Crosley Radio Corp.; (ID = 1513273) Radio Dual Fiver Sheraton Ch= 167; Crosley Radio Corp.; (ID = 1513274) Radio
Use red slider bar for more.
Dual Fiver Sheraton Ch= 167; Crosley Radio Corp.; (ID = 1513273) Radio

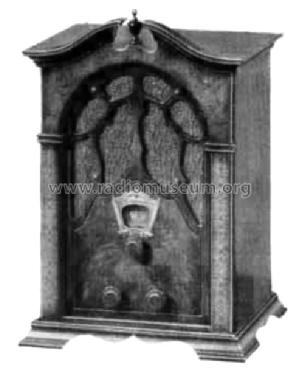

Crosley Radio Corp.;: Dual Fiver Sheraton Ch= 167 [Radio] ID = 1513273 500x617
Select picture or schematic to display from thumbnails on the right and click for download.
For model Dual Fiver Sheraton Ch= 167 Early Production, Crosley Radio Corp.; Cincinnati (OH):
Advertisement

Country:  United States of America (USA)
Manufacturer / Brand:  Crosley Radio Corp.; Cincinnati (OH)
Year: 1933/1934 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: 58 58 57 42 80
Main principle Superheterodyne (common); ZF/IF 456 kHz; 2 AF stage(s)
Tuned circuits 5 AM circuit(s)
Wave bands Broadcast (MW), Police, sometimes also early TV (75-200m).
Details
Power type and voltage Alternating Current supply (AC) / Either transformer: 60 cycles, 115V or 25-60 cycles, 115V or 50-60 cycles, 220 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
Power out
from Radiomuseum.org Model: Dual Fiver Sheraton Ch= 167 [Early Production] - Crosley Radio Corp.;
Material Wooden case
Shape Tablemodel, Tombstone = decorative upright, not cathedral but can have rounded edges.
Dimensions (WHD) 12.25 x 16.125 x 8.375 inch / 311 x 410 x 213 mm
Notes

The Crosley Dual Fiver Sheraton is an AC operated 5 tube BC and Police band receiver. This model is the early production model (Crosley calls the late production version "Series 2") and uses the 42 output tube along with other passive component differences. The component differences are noted in the Riders schematics (Page 4-10).

Model Output Tube Crosley Service Bulletin
Dual Fiver (Early Production) 42 No. 67
Dual Fiver (Late Production) 2A5 No. 72

NOTE: The Schematics show the tube socket numbers, not the tube types!

Price in first year of sale 29.00 $
External source of data Crosley Broadcaster 12, Nov. 15 1933
Mentioned in Cathedral & Tombstone Radios (Page 88)
Literature/Schematics (1) Rider's Perpetual, Volume 4 = ca. 1934 and before (Riders 4-9, 4-10)
Literature/Schematics (2) - - Manufacturers Literature (Crosley Service Bulletin No. 67)
Literature/Schematics (3) Crosley Radio Service Manual: 1943 Sets and Earlier (Page 203)
Literature/Schematics (4) Beitman Radio Diagrams, Vol. 01, 1926-1938 (Page 40)

Model page created by Mark Hippenstiel. See "Data change" for further contributors.
