Harko Senior (Sr.) Model V-C Non-Regenerative

Harko Senior Model V-C; Crosley Radio Corp.; (ID = 1160426) Radio Harko Senior Model V-C; Crosley Radio Corp.; (ID = 1161827) Radio
Use red slider bar for more.
Harko Senior Model V-C; Crosley Radio Corp.; (ID = 1160426) Radio
Crosley Radio Corp.;: Harko Senior Model V-C [Radio] ID = 1160426 933x1311
Select picture or schematic to display from thumbnails on the right and click for download.
For model Harko Senior (Sr.) Model V-C Non-Regenerative, Crosley Radio Corp.; Cincinnati (OH):

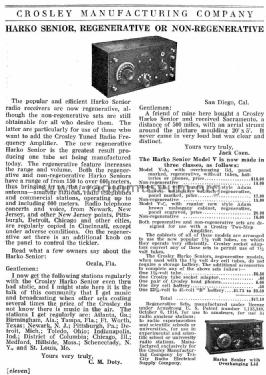

Circa December 1922 Crosley Co. Catalog page 11
Country:  United States of America (USA)
Manufacturer / Brand:  Crosley Radio Corp.; Cincinnati (OH)
Year: 1922/1923 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 1: UV200
Main principle TRF without regeneration
Tuned circuits 1 AM circuit(s)
Wave bands Broadcast only (MW).
Power type and voltage Storage and/or dry batteries
Loudspeaker - For headphones or amp.
Power out
from Model: Harko Senior Model V-C [Non-Regenerative] - Crosley Radio Corp.;
Material Wooden case
Shape Tablemodel, Box - most often with Lid (NOT slant panel).
Dimensions (WHD) 11 x 6 x 4.5 inch / 279 x 152 x 114 mm
Notes One dial (primary tuning control knob). All of the Harko Senior receivers, regenerative or non-regenerative, covered the 150 to over 600 meters wave length range. Often later dated to 1923 by some radio guides, but production started in 1922 for this receiver and continued into 1923.
By September of 1922 the Crosley Harko Senior was being referred to in their advertising as the Harko Senior No. V. Shortly thereafter variations in the model were being offered at different prices. Options included Regenerative or Non-Regenerative, two different cabinets and engraved or stamped front panel.
Technically this model would be called the Harko Senior Model V-C with new style Adam brown mahogany cabinet, Non-Regenerative, panel engraved, and sold for $16 USD in the winter of 1922. This Model V-C was also sold with regeneration for $20 USD as the Harko Senior V-C Regenerative The V-C was the "top of the line" receiver of the Harko Senior family with the engraved front panel.
This info is available in the late 1922 Crosley catalog scan of page 11 uploaded to this model page.
Price in first year of sale 16.00 $
Literature/Schematics (1) Circa December 1922 Crosley Co. Catalog page 11
