Harko Senior (Sr.) Model V-C Regenerative made by Tri-City Electric Supply

Harko Senior Model V-C; Crosley Radio Corp.; (ID = 1160427) Radio Harko Senior Model V-C; Crosley Radio Corp.; (ID = 1161826) Radio
Use red slider bar for more.
Harko Senior Model V-C; Crosley Radio Corp.; (ID = 1160427) Radio
Crosley Radio Corp.;: Harko Senior Model V-C [Radio] ID = 1160427 933x1311
Select picture or schematic to display from thumbnails on the right and click for download.
For model Harko Senior (Sr.) Model V-C Regenerative made by Tri-City Electric Supply, Crosley Radio Corp.; Cincinnati (OH):

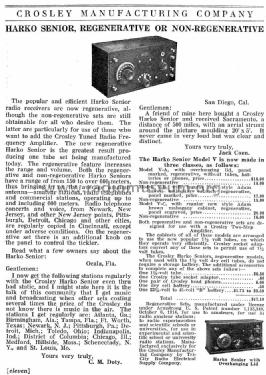

Circa December 1922 Crosley Co. Catalog page 11

Country:  United States of America (USA)
Manufacturer / Brand:  Crosley Radio Corp.; Cincinnati (OH)
Year: 1922/1923 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 1: UV200
Main principle TRF with regeneration
Tuned circuits 1 AM circuit(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage Storage and/or dry batteries
Loudspeaker - For headphones or amp.
Power out
from Radiomuseum.org Model: Harko Senior Model V-C [Regenerative made by Tri-City Electric Supply] - Crosley Radio Corp.;
Material Wooden case
Shape Tablemodel, Box - most often with Lid (NOT slant panel).
Dimensions (WHD) 11 x 6 x 4.5 inch / 279 x 152 x 114 mm
Notes One dial (primary tuning control knob). All of the Harko Senior receivers, regenerative or non-regenerative, covered the 150 to over 600 meters wave length range. Often later dated to 1923 by some radio guides, but production started in 1922 for this receiver and continued into 1923.
By September of 1922 the Crosley Harko Senior was being referred to in their advertising as the Harko Senior No. V. Shortly thereafter variations in the model were being offered at different prices. Options included Regenerative or Non-Regenerative, two different cabinets and engraved or stamped front panel.
Technically this model would be called the Harko Senior Model V-C with new style Adam brown mahogany cabinet, Regenerative, panel engraved, and sold for $20 USD in the winter of 1922. This receiver was manufactured for Crosley Manufacturing Co. by the Tri-City Electric Supply Co. as Crosley lacked the Armstrong license to build regenerative receivers. This Model V-C was also sold without regeneration for $16 USD as the Harko Senior V-C Non-Regenerative The V-C was the "top of the line" receiver of the Harko Senior family. Compared to the cheaper Harko Senior V-B the $3 more charged for the engraved front panel few of this model were sold.
This info is available in the late 1922 Crosley catalog scan of page 11 uploaded to this model page.
Price in first year of sale 20.00 $
Literature/Schematics (1) Circa December 1922 Crosley Co. Catalog page 11

Model page created by Alan Larsen. See "Data change" for further contributors.
