• Country
• United States of America (USA)

• Manufacturer / Brand
• Crosley Vacuum Products Corp., Cincinnati, Ohio

• Year
• 1953 ?

• Category
• Television Receiver (TV) or Monitor

• Radiomuseum.org ID
• 361029

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 18

• Valves / Tubes
• 6BC5 6J6 6CB6 6CB6 6CB6 6AH6 6AU6 6AL5 6C4 6W6GT 6SN7GT 12BH7 6AL5 6SN7GT 6BQ6GT 6AX4GT 1B3GT 21FP4A

• Main principle
• Superhet with RF-stage

• Wave bands
• Wave Bands given in the notes.

• Power type and voltage
• Alternating Current supply (AC) / 60 Hz, 117V = 110 -120 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 10 inch = 25.4 cm

• Material
• Wooden case

• from Radiomuseum.org
• Model: EU-21TOL Ch= 386 - Crosley Vacuum Products Corp.,

• Shape
• Console with any shape - in general

• Notes

• Crosley model EU-21TOL is a 21” b/w TV with US standard VHF tuner channels 2 thru 13. Equipped with chassis 386, VHF tuner 154116 and picture tube 21FP4A.



• Literature/Schematics (1)

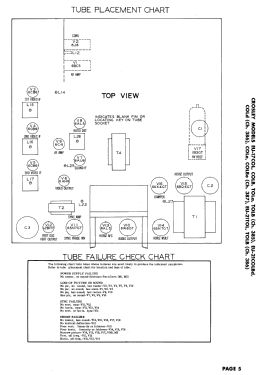

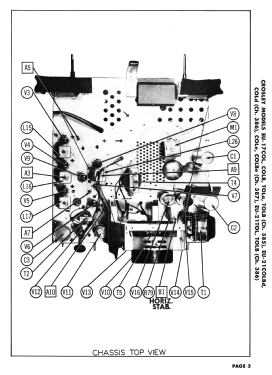

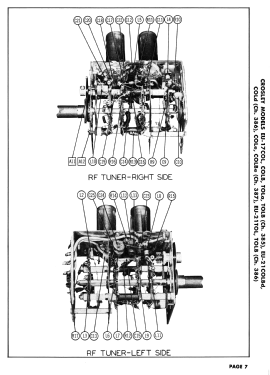

• Photofact Folder, Howard W. SAMS (Set 193, folder 3, dated 2-53)

• Author
• Model page created by Dirk Taekels. See "Data change" for further contributors.
