Crowncorder Solid State SHC-47F, CSP-65

Crown Radio Corp.; Tokyo

Data

Forum

Pictures

Collections

Country
Japan

Manufacturer / Brand
Crown Radio Corp.; Tokyo

Year
1972 ?

Category
Broadcast Receiver - or past WW2 Tuner

Radiomuseum.org ID
79487

- alternative name: Asahi Radio Mfg. Co., Ltd

Schematics

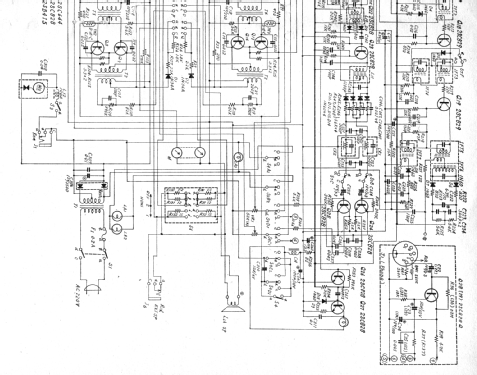

Crowncorder Solid State SHC-47F, CSP-65; Crown Radio Corp.; (ID = 106825) Radio — Crown Radio Corp.; Crowncorder Solid State SHC-47F, CSP-65 (3)
