HiFi Stereo Sound System CSC-980L

Crown Radio Corp.; Tokyo

  • Year
  • 1983 ?
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 157377
    • alternative name: Asahi Radio Mfg. Co., Ltd

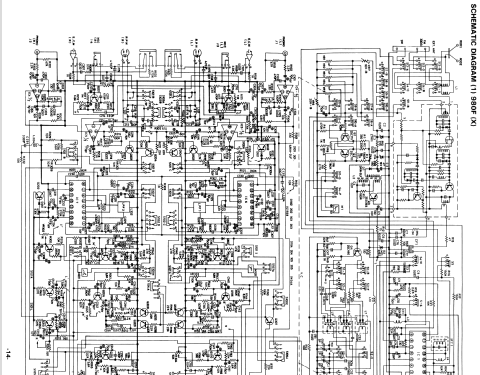

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Transistors
  • Semiconductors present.
  • Semiconductors
  • Main principle
  • Superheterodyne (common); ZF/IF 455/10700 kHz
  • Wave bands
  • Broadcast, Long Wave, Short Wave plus FM or UHF.
  • Details
  • Cassette-Recorder or -Player
  • Power type and voltage

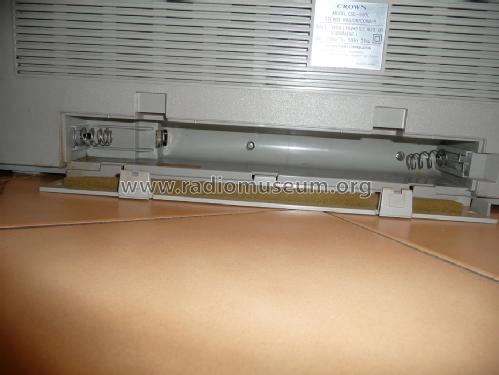

  • Line / Batteries (any type) / 220 / D: 9 x 1.5 Volt
  • Loudspeaker
  • 4 Loudspeakers
  • Material
  • Plastics (no bakelite or catalin)
  • from Radiomuseum.org
  • Model: HiFi Stereo Sound System CSC-980L - Crown Radio Corp.; Tokyo
  • Shape
  • Portable set > 8 inch (also usable without mains)
  • Dimensions (WHD)
  • 599 x 353 x 145 mm / 23.6 x 13.9 x 5.7 inch
  • Notes
  • Crown CSC-980L Hi-Fi Stereo Sound System FM/SW/MW/LW 4-Band Radiorecorder 20 cm 2 Way-4 Speaker System;
    "Ghettoblaster-Boombox"
    FM: 88 - 108 MHz, SW: 6 - 18 MHz,
    MW: 510 - 1605 KHz, LW: 150 - 300 KHz,

    Different IF for Germany and UK: 460 and 470 kHz respectively,
    four FM presets,
    batt/light switch, AFC & FM muting, FM signal/frequency meter, bass, treble & balance control, loudness switch,
    two VU meters, FM stereo/Power/Rec/Dolby indicator LEDs,

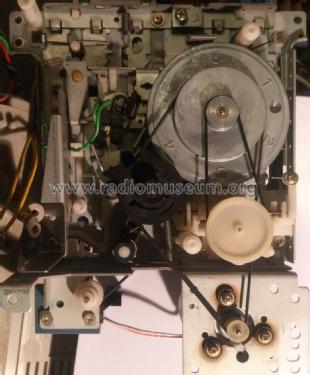

    tape counter, Cue/Review & Auto-Stop, Metal/CrO2/Normal, rec. level control, Dolby NR/ALC, Mono/Stereo/Stereo Wide, two telescopic antennas, ext. antenna-in, 12 VDC in, DIN terminal, headphones jack, Chinch phono-in with ground screw terminal, 2 x mic. & rem. in, ext. speaker jacks, two massive metal handles for carrying belt on top, made in Japan.

    Weitere Unterlagen beim CSC-980F

  • Net weight (2.2 lb = 1 kg)
  • 7 kg / 15 lb 6.7 oz (15.419 lb)
  • Author
  • Model page created by a member from A. See "Data change" for further contributors.
