Solid State 11 Transistor 4 Band TR-145W

Solid State 11 Transistor 4 Band TR-145W; Crown Radio Corp.; (ID = 1968327) Radio

Solid State 11 Transistor 4 Band TR-145W; Crown Radio Corp.; (ID = 1968328) Radio
Solid State 11 Transistor 4 Band TR-145W; Crown Radio Corp.; (ID = 1668284) Radio Solid State 11 Transistor 4 Band TR-145W; Crown Radio Corp.; (ID = 1656601) Radio
Solid State 11 Transistor 4 Band TR-145W; Crown Radio Corp.; (ID = 1656602) Radio Solid State 11 Transistor 4 Band TR-145W; Crown Radio Corp.; (ID = 1668282) Radio
Solid State 11 Transistor 4 Band TR-145W; Crown Radio Corp.; (ID = 1668288) Radio Solid State 11 Transistor 4 Band TR-145W; Crown Radio Corp.; (ID = 1668289) Radio
Solid State 11 Transistor 4 Band TR-145W; Crown Radio Corp.; (ID = 1668292) Radio Solid State 11 Transistor 4 Band TR-145W; Crown Radio Corp.; (ID = 1668294) Radio
Solid State 11 Transistor 4 Band TR-145W; Crown Radio Corp.; (ID = 1668304) Radio Solid State 11 Transistor 4 Band TR-145W; Crown Radio Corp.; (ID = 1668305) Radio
Use red slider bar for more.
Solid State 11 Transistor 4 Band TR-145W; Crown Radio Corp.; (ID = 1668284) Radio
Crown Radio Corp.;: Solid State 11 Transistor 4 Band TR-145W [Radio] ID = 1668284 933x655
Select picture or schematic to display from thumbnails on the right and click for download.
For model Solid State 11 Transistor 4 Band TR-145W, Crown Radio Corp.; Tokyo:
Collection of Mr. Atabai

Country:  Japan
Manufacturer / Brand:  Crown Radio Corp.; Tokyo
alternative name

Asahi Radio Mfg. Co., Ltd
Year: 1968 ? Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 11: 2SC460 2SC460 2SA12 2SA12 2SB75 2SB77 CDC13000 CDC13000 2SB77 2SB370 2SB370 1N34A
Main principle Superheterodyne (common); ZF/IF 455 kHz
Wave bands Broadcast plus more than 2 Short Wave bands.
Details
Power type and voltage Line / Batteries (any type) / 117; 220 / D: 4 × 1,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out 0.9 W (1.4 W max.)
from Radiomuseum.org Model: Solid State 11 Transistor 4 Band TR-145W - Crown Radio Corp.; Tokyo
Material Various materials
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 10.7 x 7.3 x 3.6 inch / 272 x 185 x 91 mm
Notes

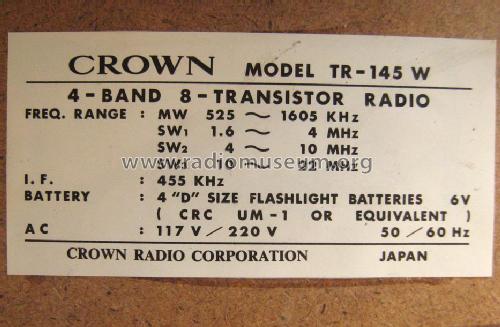

Frequency Range:
MW: 525 - 1605 kHz
SW1: 1.6 - 4 MHz
SW2:   4 - 10 MHz
SW3: 10 - 22 MHz

With Sleep Switch



Net weight (2.2 lb = 1 kg) 4.3 lb (4 lb 4.8 oz) / 1.952 kg
Mentioned in -- Original prospect or advert

Model page created by Sandor Selyem-Tóth. See "Data change" for further contributors.
