• Year
  • 1962–1964
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 185090
    • alternative name: Asahi Radio Mfg. Co., Ltd

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Transistors
  • 9
  • Semiconductors
  • Main principle
  • Superheterodyne (common); ZF/IF 455 kHz
  • Wave bands
  • Broadcast plus 2 Short Wave bands.
  • Power type and voltage
  • Dry Batteries / 4 x 1,5 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
  • Power out
  • 0.35 W (unknown quality)
  • Material
  • Various materials
  • from Radiomuseum.org
  • Model: TR-950 - Crown Radio Corp.; Tokyo
  • Shape
  • Very small Portable or Pocket-Set (Handheld) < 8 inch.
  • Dimensions (WHD)
  • 212 x 112 x 51 mm / 8.3 x 4.4 x 2 inch
  • Notes

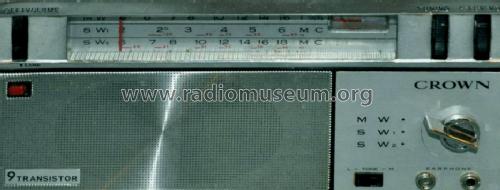

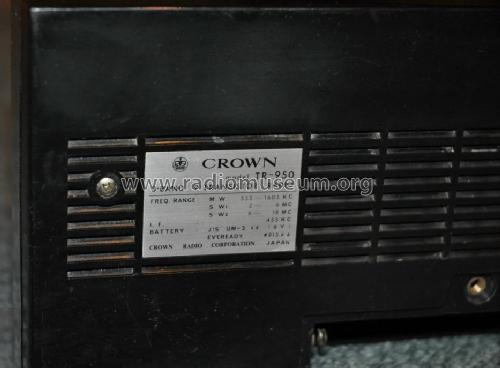

  • Crown TR-950 MW/ SW1/SW2 3-Band 9-Transistor Radio, same model with MW/LW/SW under model no. TR-950 L.
  • Net weight (2.2 lb = 1 kg)
  • 0.770 kg / 1 lb 11.1 oz (1.696 lb)
  • Author
  • Model page created by Eckhard Wegner. See "Data change" for further contributors.
