10 Transistor FM/AM 2 Band Radio TRF-1100

10 Transistor FM/AM 2 Band Radio TRF-1100; Crown Radio Corp.; (ID = 636148) Radio

10 Transistor FM/AM 2 Band Radio TRF-1100; Crown Radio Corp.; (ID = 636149) Radio

10 Transistor FM/AM 2 Band Radio TRF-1100; Crown Radio Corp.; (ID = 636150) Radio
10 Transistor FM/AM 2 Band Radio TRF-1100; Crown Radio Corp.; (ID = 2300385) Radio 10 Transistor FM/AM 2 Band Radio TRF-1100; Crown Radio Corp.; (ID = 2300386) Radio
10 Transistor FM/AM 2 Band Radio TRF-1100; Crown Radio Corp.; (ID = 2300387) Radio 10 Transistor FM/AM 2 Band Radio TRF-1100; Crown Radio Corp.; (ID = 2300388) Radio
10 Transistor FM/AM 2 Band Radio TRF-1100; Crown Radio Corp.; (ID = 2300389) Radio 10 Transistor FM/AM 2 Band Radio TRF-1100; Crown Radio Corp.; (ID = 1195630) Radio
10 Transistor FM/AM 2 Band Radio TRF-1100; Crown Radio Corp.; (ID = 95252) Radio 10 Transistor FM/AM 2 Band Radio TRF-1100; Crown Radio Corp.; (ID = 95253) Radio
10 Transistor FM/AM 2 Band Radio TRF-1100; Crown Radio Corp.; (ID = 95254) Radio 10 Transistor FM/AM 2 Band Radio TRF-1100; Crown Radio Corp.; (ID = 235096) Radio
Use red slider bar for more.
10 Transistor FM/AM 2 Band Radio TRF-1100; Crown Radio Corp.; (ID = 2300385) Radio

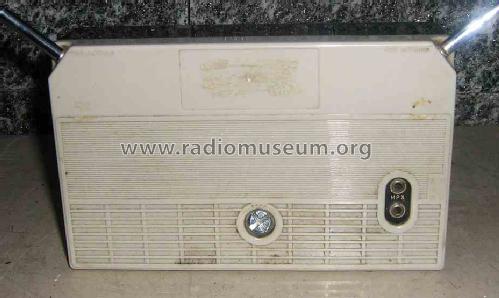

Crown Radio Corp.;: 10 Transistor FM/AM 2 Band Radio TRF-1100 [Radio] ID = 2300385 1390x915
Select picture or schematic to display from thumbnails on the right and click for download.
For model 10 Transistor FM/AM 2 Band Radio TRF-1100, Crown Radio Corp.; Tokyo

Country:  Japan
Manufacturer / Brand:  Crown Radio Corp.; Tokyo
alternative name

Asahi Radio Mfg. Co., Ltd
Year: 1963/1964 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 10: 2SA235 2SA235 2SA235 2SA80 2SA80 2SA80 2SB75 2SB75 2SB77 2SB77 1N34A 1N34A 1N60 1N60
Main principle Superheterodyne (common); ZF/IF 455/10700 kHz
Tuned circuits 5 AM circuit(s)     8 FM circuit(s)
Wave bands Broadcast (BC) and FM or UHF.
Details
Power type and voltage Dry Batteries / AA: 6 x 1.5; 9 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5 cm = 2 inch
Power out 0.4 W (unknown quality)
from Radiomuseum.org Model: 10 Transistor FM/AM 2 Band Radio TRF-1100 - Crown Radio Corp.; Tokyo
Material Various materials
Shape Very small Portable or Pocket-Set (Handheld) < 8 inch.
Dimensions (WHD) 180 x 110 x 50 mm / 7.1 x 4.3 x 2 inch
Notes

Two built-in antennas, jacks for two headphones. Works with 9 volt block or six 1.5 V batteries R6 (with adaptor).

Gerät wurde vom Versandhaus Quelle mit der Art.-Nr. 08525 vertrieben.

Material : Housing plastic, front cover metal.

Batteries : 6 x Eveready No. 915

Net weight (2.2 lb = 1 kg) 0.8 kg / 1 lb 12.2 oz (1.762 lb)
Source of data -- Schematic
Mentioned in Funkschau (1966 Heft 7 Seite 470 - Advert)

Model page created by Peter Böhm. See "Data change" for further contributors.



All listed radios etc. from Crown Radio Corp.; Tokyo
