TRP-105
Crown Radio Corp.; Tokyo
- Country
- Japan
- Manufacturer / Brand
- Crown Radio Corp.; Tokyo
- Year
- 1965
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 156569
-
- alternative name: Asahi Radio Mfg. Co., Ltd
Aus Funkschau 1965, Heft 12

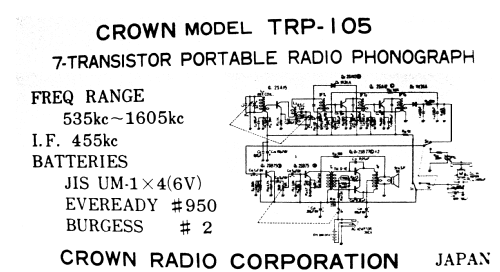

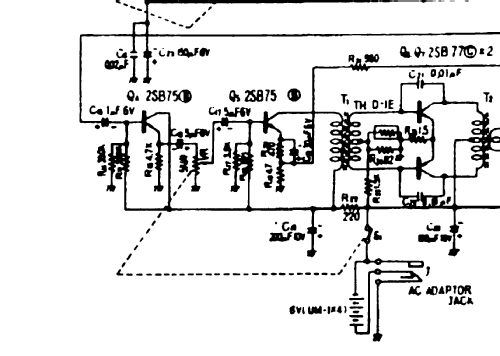

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- 7
- Main principle
- Superheterodyne (common); ZF/IF 455 kHz; 3 AF stage(s)
- Tuned circuits
- 5 AM circuit(s)
- Wave bands
- Broadcast only (MW).
- Details
- Record Player (not changer)
- Power type and voltage
- Batteries / addl. power jack / D: 4 x 1,5 V / 6 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: TRP-105 - Crown Radio Corp.; Tokyo
- Shape
- Portable set > 8 inch (also usable without mains)
- Notes
-

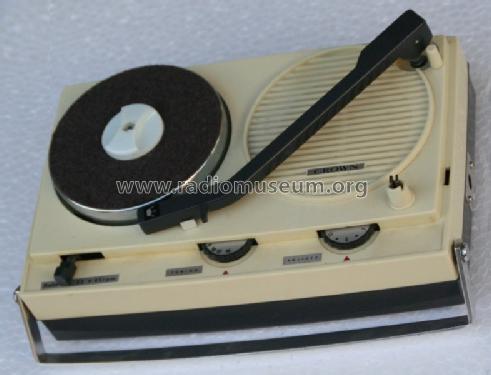

Es handelt sich um einen batteriebetriebenen, transportablen Plattenspieler (33/ 45 UpM) mit eingebautem Mittelwellenempfänger. Das Gerät lässt sich auch mittels Netzteil betreiben.
- Source of data
- -- Schematic
- Mentioned in
- Funkschau (Heft 2, Januar 1965)
- Author
- Model page created by Erwin Linke. See "Data change" for further contributors.
