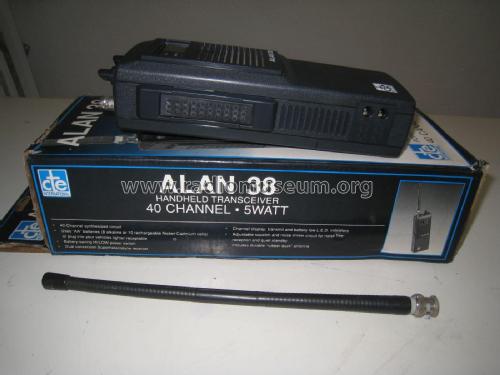

Alan 38; CTE international S. (ID = 2119328) Citizen
CTE international S.: Alan 38 [Citizen] ID = 2119328 1400x1867
Select picture or schematic to display from thumbnails on the right and click for download.
For model Alan 38, CTE international S.r.l. ; Mancasale

Country:  Italy
Manufacturer / Brand:  CTE international S.r.l. ; Mancasale
Year: 1990 ?? Category: Citizen Band Equipment
Semiconductors (the count is only for transistors) Semiconductors present.
Main principle Transceiver; ZF/IF 10695/455 kHz
Wave bands Short Wave (SW only)
Details
Power type and voltage Storage and/or dry batteries / 12/13,8 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4.5 cm = 1.8 inch
Power out 4 W (unknown quality)
from Radiomuseum.org Model: Alan 38 - CTE international S.r.l. ;
Material Plastics (no bakelite or catalin)
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 70 x 200 x 60 mm / 2.8 x 7.9 x 2.4 inch
Notes 27 MHz. 40 chanells AM (26,965 a 27,405 MHz).
Source of data - - Data from my own collection

Model page created by Gil Silva. See "Data change" for further contributors.



All listed radios etc. from CTE international S.r.l. ; Mancasale
Here you find 51 models, 50 with images and 11 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
