Alan 88S

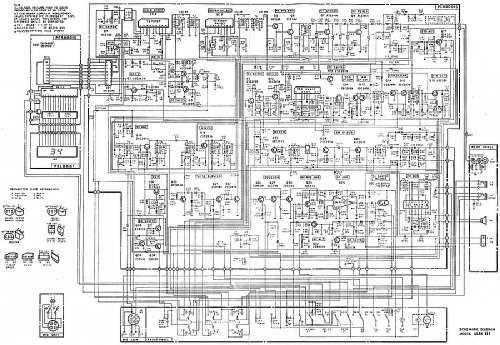

Alan 88S; CTE international S. (ID = 1972969) Citizen
Alan 88S; CTE international S. (ID = 1972953) Citizen Alan 88S; CTE international S. (ID = 1972954) Citizen
Alan 88S; CTE international S. (ID = 1972955) Citizen
Use red slider bar for more.
Alan 88S; CTE international S. (ID = 1972953) Citizen
CTE international S.: Alan 88S [Citizen] ID = 1972953 933x415
Select picture or schematic to display from thumbnails on the right and click for download.
For model Alan 88S, CTE international S.r.l. ; Mancasale

Country:  Italy
Manufacturer / Brand:  CTE international S.r.l. ; Mancasale
Year: 1985 ?? Category: Citizen Band Equipment
Semiconductors (the count is only for transistors) Semiconductors present.
Main principle Transceiver
Wave bands Short Wave (SW only)
Details
Power type and voltage Storage Battery for all (e.g. for car radios and amateur radios) / 12 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out 3 W (unknown quality)
from Radiomuseum.org Model: Alan 88S - CTE international S.r.l. ;
Material Metal case
Shape Chassis only or for «building in»
Dimensions (WHD) 185 x 63 x 247 mm / 7.3 x 2.5 x 9.7 inch
Notes

Frequency range  26.865-27.265; Channels 34(Italy)

Mode AM-FM-SSB
Power output AM-FM 2.5W, SSB 4.8W



Net weight (2.2 lb = 1 kg) 2 kg / 4 lb 6.5 oz (4.405 lb)

Model page created by Ciro Guidi. See "Data change" for further contributors.
