Galaxi 1000
Use red slider bar for more.

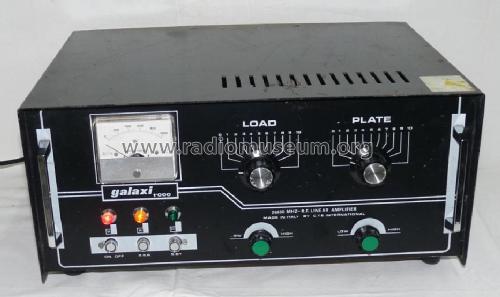

CTE international S.: Galaxi 1000 [RF-Ampl.] ID = 575259 933x556
Select picture or schematic to display from thumbnails on the right and click for download.
|
|
||||
| Year: 1972 ?? | Category: RF (Radio Frequency-) Amplifier | ||||

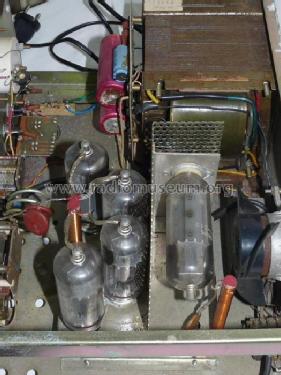

| Valves / Tubes | 5: EL519 EL519 EL519 EL519 EL519 | ||||
|---|---|---|---|---|---|
| schematic requested | |||||
| Main principle | Radio Frequency Amplification only |
|---|---|
| Wave bands | Short Wave (SW only) |
| Details | |
| Power type and voltage | Alternating Current supply (AC) / 220 Volt |
| Loudspeaker | - - No sound reproduction output. |
| Power out | |
| from Radiomuseum.org | Model: Galaxi 1000 - CTE international S.r.l. ; |
| Material | Metal case |
| Shape | Tablemodel, with any shape - general. |
| Dimensions (WHD) | 400 x 200 x 305 mm / 15.7 x 7.9 x 12 inch |
| Notes | 26-30 MHz, Röhren werden mit Lüfter gekühlt. |
| Net weight (2.2 lb = 1 kg) | 18 kg / 39 lb 10.4 oz (39.648 lb) |
Model page created by Peter Böhm. See "Data change" for further contributors.
