Portable VHF-FM Transeiver CT6V
Use red slider bar for more.

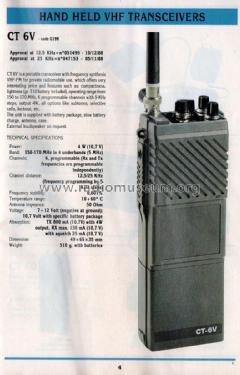

CTE international S.: Portable VHF-FM Transeiver CT6V [Commercial TRX] ID = 2056746 768x1199
Select picture or schematic to display from thumbnails on the right and click for download.
|
|
||||
| Year: 1991 ? | Category: Commercial Transmitter & Receiver (TRX not Amateur) | ||||
| Semiconductors (the count is only for transistors) | Semiconductors present. |
|---|
| Main principle | Transceiver |
|---|---|
| Wave bands | Wave Bands given in the notes. |
| Details | |
| Power type and voltage | Batteries / addl. power jack / 7 - 12 Volt |
| Loudspeaker | Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) |
| Power out | |
| from Radiomuseum.org | Model: Portable VHF-FM Transeiver CT6V - CTE international S.r.l. ; |
| Material | Plastics (no bakelite or catalin) |
| Shape | Very small Portable or Pocket-Set (Handheld) < 8 inch. |
| Dimensions (WHD) | 49 x 65 x 35 mm / 1.9 x 2.6 x 1.4 inch |
| Notes | 150 - 170 MHz |
| Net weight (2.2 lb = 1 kg) | 0.510 kg / 1 lb 2 oz (1.123 lb) |
| Mentioned in | - - Manufacturers Literature |
Model page created by Manuel Albano Neves. See "Data change" for further contributors.
