SWR Power Modulation Meter HQ 1000

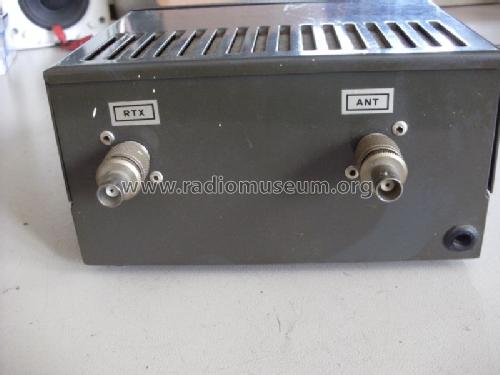

SWR Power Modulation Meter HQ 1000; CTE international S. (ID = 1653045) Equipment SWR Power Modulation Meter HQ 1000; CTE international S. (ID = 1653047) Equipment
SWR Power Modulation Meter HQ 1000; CTE international S. (ID = 1653049) Equipment
Use red slider bar for more.
SWR Power Modulation Meter HQ 1000; CTE international S. (ID = 1653045) Equipment
CTE international S.: SWR Power Modulation Meter HQ 1000 [Equipment] ID = 1653045 800x600
Select picture or schematic to display from thumbnails on the right and click for download.
For model SWR Power Modulation Meter HQ 1000, CTE international S.r.l. ; Mancasale

Country:  Italy
Manufacturer / Brand:  CTE international S.r.l. ; Mancasale
Year: 1990 ?? Category: Service- or Lab Equipment
Wave bands Wave Bands given in the notes.
Details
Power type and voltage Powered by external power supply or a main unit. / 10-15 Volt
Loudspeaker - - No sound reproduction output.
Power out
from Radiomuseum.org Model: SWR Power Modulation Meter HQ 1000 - CTE international S.r.l. ;
Material Metal case
Shape Tablemodel without push buttons, Mantel/Midget/Compact up to 14
Dimensions (WHD) 180 x 100 x 130 mm / 7.1 x 3.9 x 5.1 inch
Notes

Midland HQ 1000 Rosmetro/Wattmetro/Modulometro di tipo passante ad alta potenza. La banda di funzionamento è 3.5 - 150 MHz e la massima potenza applicabile al wattmetro è di 1000 watt. illuminazione dello strumento 12V.

Caratteristiche:
Frequenza: 3.5-150 Mhz
Alimentazione: 10-15 Vcc
Wattmetro: 10-100-1000 Watt
Percentuale modulazione: 20-100%
Net weight (2.2 lb = 1 kg) 0.6 kg / 1 lb 5.1 oz (1.322 lb)

Model page created by Giuseppe Tedesco. See "Data change" for further contributors.
