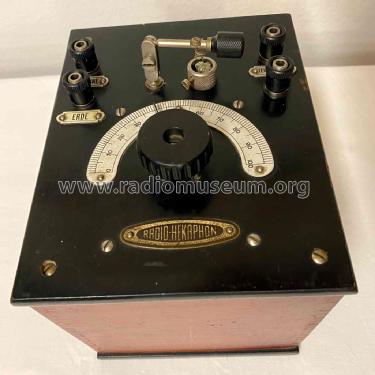

Detektor-Empfänger 89008

Country:  Austria
Manufacturer / Brand:  Czeija, Nissl & Co., Standard, ITT, Alcatel; Wien
alternative name

Hekaphon
Year: 1924–1928 Category: Detector-Radio (Crystal or diode, without tubes/transistors)
Main principle Crystal or Solid State Detector; Crystal-detection 1 circuit (no tubes)
Tuned circuits 1 AM circuit(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage No Power needed
Loudspeaker - For headphones or amp.
Power out
from Radiomuseum.org Model: Detektor-Empfänger 89008 - Czeija, Nissl & Co., Standard,
Material Wooden case
Dimensions (WHD) 135 x 175 x 170 mm / 5.3 x 6.9 x 6.7 inch
Notes "Radio Hekaphon"; Variometer; für 300-600 m.
Net weight (2.2 lb = 1 kg) 0.8 kg / 1 lb 12.2 oz (1.762 lb)
Price in first year of sale 24.00 öS
External source of data E. Erb 3-907007-36-0
Source of data Radiokatalog Band 2, Ernst Erb
