• Country
• Austria

• Manufacturer / Brand
• Czeija, Nissl & Co., Standard, ITT, Alcatel; Wien

• Year
• 1925 ?

• Category
• Service- or Lab Equipment

• Radiomuseum.org ID
• 349540

• • alternative name: Hekaphon

Click on the schematic thumbnail to request the schematic as a free document.

• Wave bands
• - without

• Power type and voltage
• No Power needed

• Loudspeaker
• - - No sound reproduction output.

• Material
• Metal case

• from Radiomuseum.org

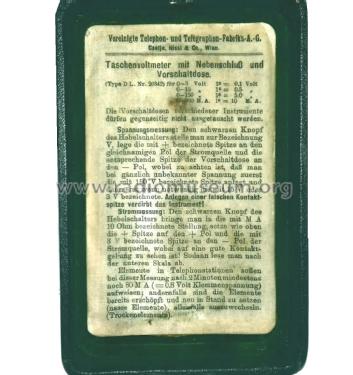

• Model: VTUTF Taschenvoltmeter mit Nebenschluss und Vorschaltdose DL Nr. 20342 - Czeija, Nissl & Co., Standard,

• Shape
• Very small Portable or Pocket-Set (Handheld) < 8 inch.

• Dimensions (WHD)
• 90 x 145 x 40 mm / 3.5 x 5.7 x 1.6 inch

• Notes

• 0-3-15-150 V und 0-300 mA

  Taschenvoltmeter dimension: 55×55×22 mm.

  Vorschaltdose dimension:  47×47×18 mm.

• Author
• Model page created by Sándor Selyem-Tóth. See "Data change" for further contributors.
