unknown 2

unknown 2 ; Czerwiński, Radio; (ID = 1834655) Radio unknown 2 ; Czerwiński, Radio; (ID = 1834656) Radio

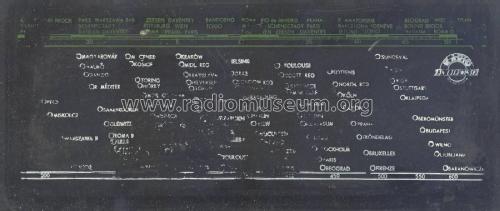

unknown 2 ; Czerwiński, Radio; (ID = 1838047) Radio
Use red slider bar for more.
unknown 2 ; Czerwiński, Radio; (ID = 1834655) Radio
Czerwiński, Radio;: unknown 2 [Radio] ID = 1834655 1400x846
Select picture or schematic to display from thumbnails on the right and click for download.
For model unknown 2, Czerwiński, Radio; (where?)

Country:  Poland
Manufacturer / Brand:  Czerwiński, Radio; (where?)
Year: 1939 ? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: EK2 EF9 EBC3 EL3 EM1 AZ1
Main principle Super-Heterodyne (Super in general); 2 AF stage(s)
Tuned circuits 7 AM circuit(s)
Wave bands Broadcast, Long Wave and Short Wave.
Details
Power type and voltage Alternating Current supply (AC)
Loudspeaker Permanent or electro-dynamic (moving coil), system not known yet.
Power out
from Radiomuseum.org Model: unknown 2 - Czerwiński, Radio; where?
Material Wooden case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 570 x 280 x 260 mm / 22.4 x 11 x 10.2 inch

Model page created by Tomasz Szczesniak. See "Data change" for further contributors.



All listed radios etc. from Czerwiński, Radio; (where?)
Here you find 15 models, 15 with images and 0 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
