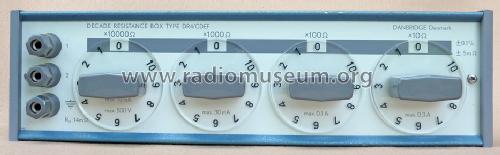

Decade Resistance Box DR4/CDEF

Danbridge Electronics; Herlev

Data
Forum
Pictures
Collections

  • Year
  • 1975 ??
  • Category
  • Service- or Lab Equipment
  • Radiomuseum.org ID
  • 224024

 Technical Specifications

  • Wave bands
  • - without
  • Power type and voltage
  • No Power needed
  • Loudspeaker
  • - - No sound reproduction output.
  • Material
  • Metal case
  • from Radiomuseum.org
  • Model: Decade Resistance Box DR4/CDEF - Danbridge Electronics; Herlev
  • Shape
  • Tablemodel, with any shape - general.
  • Dimensions (WHD)
  • 305 x 85 x 115 mm / 12 x 3.3 x 4.5 inch
  • Notes

  •   Widerstandsbereich:10Ω - 100KΩ in 4 Decaden.
      1.Dekade:10Ω - 1KΩ,  max. 0,3 A
      2.Dekade:100Ω - 1KΩ,  max. 0,1A
      3.Dekade:1KΩ - 10KΩ,  max. 30mA
      4.Dekade:10KΩ - 100KΩ,  max.10mA , max 500V
      Genauigkeit:+/- 0,1% ,+/- 5mΩ
      Ro=14mΩ





  • Net weight (2.2 lb = 1 kg)
  • 1.250 kg / 2 lb 12.1 oz (2.753 lb)
  • Author
  • Model page created by Rudolf Osterkamp. See "Data change" for further contributors.
