Communication Receiver M 88

Communication Receiver M 88; Dansk Radio (ID = 1686966) Receiver-C Communication Receiver M 88; Dansk Radio (ID = 1989195) Receiver-C

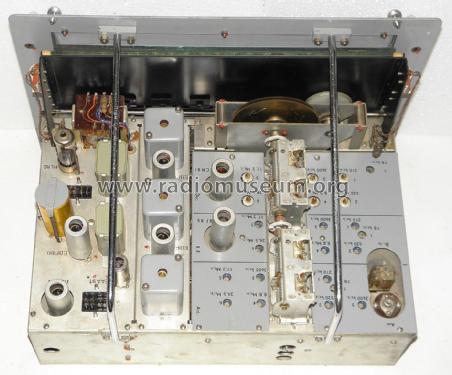

Communication Receiver M 88; Dansk Radio (ID = 1989196) Receiver-C Communication Receiver M 88; Dansk Radio (ID = 1989197) Receiver-C
Use red slider bar for more.
Communication Receiver M 88; Dansk Radio (ID = 1686966) Receiver-C
Dansk Radio: Communication Receiver M 88 [Receiver-C] ID = 1686966 686x544
Select picture or schematic to display from thumbnails on the right and click for download.
For model Communication Receiver M 88, Dansk Radio (Elektromekano); Stenlille:
From Manufacturer spc brochure

Country:  Denmark
Manufacturer / Brand:  Dansk Radio (Elektromekano); Stenlille
Year: 1955 ?? Category: Commercial Receiver (may include amateur bands)
Valves / Tubes 7: EF85 ECH81 EBF80 EBF80 EAA91 EBF80 PL82
Semiconductors (the count is only for transistors) Selen
Main principle Superhet with RF-stage; ZF/IF 560 kHz; 2 AF stage(s)
Wave bands Short Wave (SW) and Long Wave (LW) only.
Details
Power type and voltage Line / Storage batteries (perhaps also batteries) / 220/24 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 12 cm = 4.7 inch
Power out
from Radiomuseum.org Model: Communication Receiver M 88 - Dansk Radio Elektromekano;
Material Metal case
Shape Boatanchor (heavy military or commercial set).
Dimensions (WHD) 490 x 370 x 360 mm / 19.3 x 14.6 x 14.2 inch
Notes

Marineempfänger,  6 Frequenzbereiche 75 - 220 kHz, 220 - 540 kHz, 1590 - 3700 kHz, 3,65 - 9,1 MHz, 7,1 -17,2 MHz, 17,2 - 24,8 MHz, Betriebsarten A1, A2 und A3.
Der Empfänger kann an 220 V Wechselstrom oder 24 V Gleichstrom betrieben werden. Bei 24 V- Betrieb ist die Anodenspannung auch auf diesen Wert verringert, die Empfindlichkeit ist gering, genügte aber zur Zulassung als Notempfänger.

Net weight (2.2 lb = 1 kg) 25 kg / 55 lb 1.1 oz (55.066 lb)

Model page created by Alberto Sanna-Alonso. See "Data change" for further contributors.
