Regler Transistor TR11

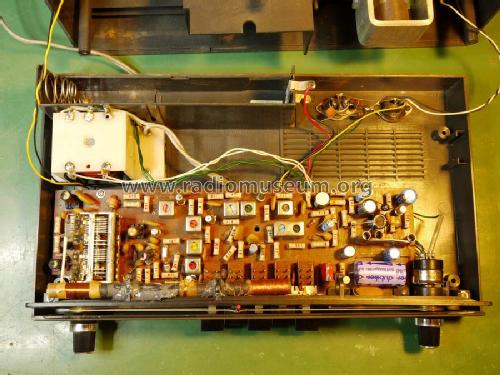

Regler Transistor TR11; DBR D.B.R.; (ID = 1392797) Radio Regler Transistor TR11; DBR D.B.R.; (ID = 1392795) Radio
Regler Transistor TR11; DBR D.B.R.; (ID = 1392798) Radio Regler Transistor TR11; DBR D.B.R.; (ID = 1392799) Radio

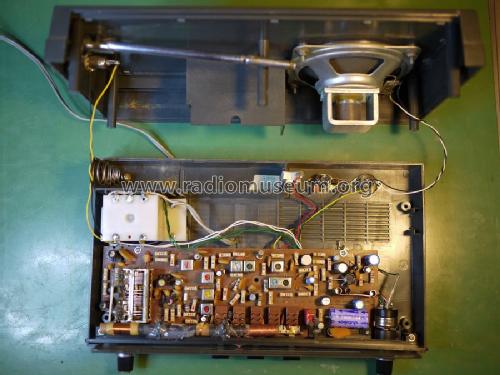

Regler Transistor TR11; DBR D.B.R.; (ID = 1392800) Radio
Use red slider bar for more.
Regler Transistor TR11; DBR D.B.R.; (ID = 1392797) Radio
DBR D.B.R.;: Regler Transistor TR11 [Radio] ID = 1392797 900x675
Select picture or schematic to display from thumbnails on the right and click for download.
For model Regler Transistor TR11, DBR (D.B.R.); Vimodrone (MI)

Country:  Italy
Manufacturer / Brand:  DBR (D.B.R.); Vimodrone (MI)
Year: 1975 ?? Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 12:
Main principle Superheterodyne (common); ZF/IF 455 kHz
Tuned circuits 2 AM circuit(s)     1 FM circuit(s)
Wave bands Broadcast, Long Wave and FM or UHF.
Details
Power type and voltage Line / Batteries (any type) / 110; 220 / 6 x 1,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 9 cm = 3.5 inch
Power out 0.2 W (unknown quality)
from Radiomuseum.org Model: Regler Transistor TR11 - DBR D.B.R.; Vimodrone MI
Material Modern plastics (no Bakelite or Catalin)
Shape Tablemodel with Push Buttons.
Dimensions (WHD) 290 x 160 x 65 mm / 11.4 x 6.3 x 2.6 inch
Notes

Il modello Regler TR11 è dotato di presa d'antenna per autoradio e di prese per registratore e altoparlante esterno.

Net weight (2.2 lb = 1 kg) 1.5 kg / 3 lb 4.9 oz (3.304 lb)

Model page created by Gianluigi Miazzi. See "Data change" for further contributors.
