3 Band Dynamic Range Expander 3BX

3 Band Dynamic Range Expander 3BX; dbx Inc.; Waltham MA (ID = 1007612) Ampl/Mixer

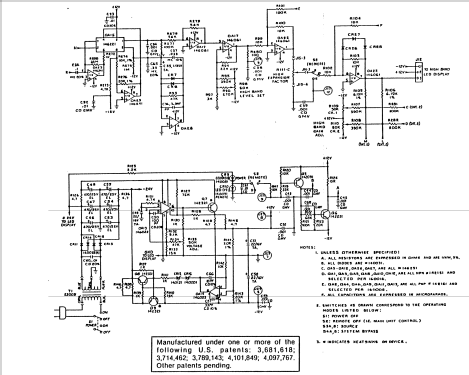

3 Band Dynamic Range Expander 3BX; dbx Inc.; Waltham MA (ID = 1007613) Ampl/Mixer

3 Band Dynamic Range Expander 3BX; dbx Inc.; Waltham MA (ID = 1007614) Ampl/Mixer

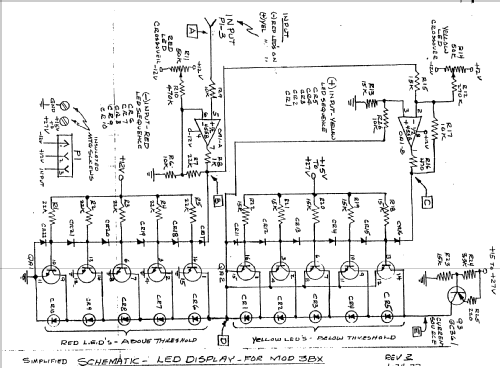

3 Band Dynamic Range Expander 3BX; dbx Inc.; Waltham MA (ID = 1007615) Ampl/Mixer

3 Band Dynamic Range Expander 3BX; dbx Inc.; Waltham MA (ID = 1007616) Ampl/Mixer
3 Band Dynamic Range Expander 3BX; dbx Inc.; Waltham MA (ID = 2226206) Ampl/Mixer 3 Band Dynamic Range Expander 3BX; dbx Inc.; Waltham MA (ID = 887508) Ampl/Mixer
3 Band Dynamic Range Expander 3BX; dbx Inc.; Waltham MA (ID = 2226203) Ampl/Mixer 3 Band Dynamic Range Expander 3BX; dbx Inc.; Waltham MA (ID = 2226204) Ampl/Mixer
3 Band Dynamic Range Expander 3BX; dbx Inc.; Waltham MA (ID = 2226205) Ampl/Mixer 3 Band Dynamic Range Expander 3BX; dbx Inc.; Waltham MA (ID = 2226207) Ampl/Mixer
3 Band Dynamic Range Expander 3BX; dbx Inc.; Waltham MA (ID = 2226208) Ampl/Mixer 3 Band Dynamic Range Expander 3BX; dbx Inc.; Waltham MA (ID = 2226209) Ampl/Mixer
Use red slider bar for more.
3 Band Dynamic Range Expander 3BX; dbx Inc.; Waltham MA (ID = 2226206) Ampl/Mixer

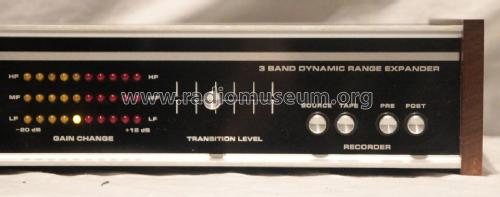

dbx Inc.; Waltham MA: 3 Band Dynamic Range Expander 3BX [Ampl/Mixer] ID = 2226206 1400x530
Select picture or schematic to display from thumbnails on the right and click for download.
For model 3 Band Dynamic Range Expander 3BX, dbx Inc.; Waltham (MA)

Country:  United States of America (USA)
Manufacturer / Brand:  dbx Inc.; Waltham (MA)
Year: 1977 ? Category: Audio Amplifier or -mixer
Semiconductors (the count is only for transistors) Semiconductors present.
Main principle Audio-Amplification
Wave bands - without
Details
Power type and voltage Alternating Current supply (AC) / 220 Volt
Loudspeaker - For headphones or amp.
Power out
from Radiomuseum.org Model: 3 Band Dynamic Range Expander 3BX - dbx Inc.; Waltham MA
Material Metal case
Shape Tablemodel, with any shape - general.
Dimensions (WHD) 450 x 95 x 255 mm / 17.7 x 3.7 x 10 inch
Notes

Tape noise reduction system continuously ajustable from 1x to 1,5x. S/N 110dB; Z-in: 50K; V-in:300mV; Z-out: 0,1K; Freq-range: 20-20000Hz.
This apparatus must be inserted between the amplifier and the recorder. Works with any recorder because the compression is linear in contrast to Dolby-NR or Dolby-B where the reproduction level must match the recording level.
No DBX disc capability.
Splits the audio band in 3 bands which are treated apart.

Exspansion: 1:1.5 maximum each band
Dynamic Range: 110dB (peak signal to weighted background noise ratio)
Transition Level range (treshold): 30mV to 3V (mid-band)
Attack and Release Rates (response time): Programe dependant, optimized for each frequency band
Frequency Response: +-0.5dB, 20hz to 20kHz at an expansion ratio 1.0:1
Harmonic Distortion: 0.1% 20Hz to 20kHz at any exspansion settings
Intermodulation Distortion: less than or equal to 0.5% per SMPTE method
Input noise: 90dB below 1 Volt "A" weighted
Input impedance: 50kOhms
Output impedance: The 3BX is designed to feed tape recorder inputs of 5kOhms or greater
Maximum output level: 7 Volts RMS at 1kHz into 5kOhms load
Power requirements: 117V AC, 50 or 60Hz, 30Watts Maximum, EU models wired for 220V and 240V

Net weight (2.2 lb = 1 kg) 3.9 kg / 8 lb 9.4 oz (8.59 lb)
Price in first year of sale 42'500.00 Bfr
Source of data -- Original prospect or advert

Model page created by Dirk Bladt. See "Data change" for further contributors.
