• Country
• Germany

• Manufacturer / Brand
• DEBEG, Deutsche Betriebsges.f.drahtlose Telegraphie mbH;

• Year
• 1960

• Category
• Commercial Receiver (may include amateur bands)

• Radiomuseum.org ID
• 184888

• • Brand: Deutsche Betr-ges.f.drahtl.Telegraphie mbH

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 0

• Valves / Tubes
• 108C1

• Number of Transistors
• 8

• Semiconductors
• OC615 OC615 OC615 OC615 OC615 OC604 OC604spez OC604spez OA85 OA85

• Main principle
• Superhet with RF-stage; 2 AF stage(s)

• Tuned circuits
• 9 AM circuit(s)

• Wave bands
• Broadcast, Long Wave and Short Wave.

• Power type and voltage
• Storage and/or dry batteries / 6 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 6 cm = 2.4 inch

• Material
• Metal case

• from Radiomuseum.org
• Model: Marine-Peilempfänger E 616 - DEBEG, Deutsche Betriebsges.f.

• Shape
• Tablemodel with Push Buttons.

• Dimensions (WHD)
• 375 x 250 x 220 mm / 14.8 x 9.8 x 8.7 inch

• Notes

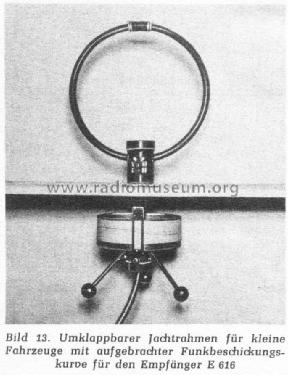

• Kleinpeiler für Betrieb mit einem Peilrahmen. Eingebaute Batterie 6 V. Empfangsbereiche 240 - 510 kHz, 600 - 1600 kHz, 1600 - 4000 kHz.

• Net weight (2.2 lb = 1 kg)
• 9 kg / 19 lb 13.2 oz (19.824 lb)

• Mentioned in
• Funkschau (4/1963, S. 90)

• Literature/Schematics (1)
• -- Schematic

• Author
• Model page created by Siegfried Droese. See "Data change" for further contributors.
