AW3P

AW3P; Decca, London (ID = 1773875) Radio AW3P; Decca, London (ID = 1894022) Radio
Use red slider bar for more.
AW3P; Decca, London (ID = 1773875) Radio

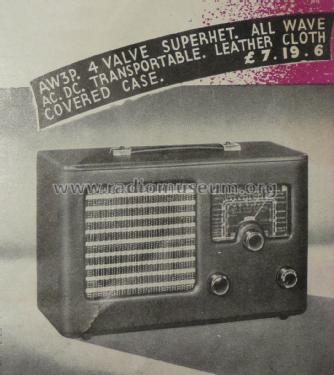

Decca, London: AW3P [Radio] ID = 1773875 1400x1570
Select picture or schematic to display from thumbnails on the right and click for download.
For model AW3P, Decca, London:
Q = the wireless & electrical trader january 1940

Country:  Great Britain (UK)
Manufacturer / Brand:  Decca, London
alternative name

Decca Gramophone || Decca Radio
Year: 1940 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 4: X65 6B8G KT35C or KT33C U31 or 25Z6
Main principle Superheterodyne (common); ZF/IF 380 kHz; Reflex
Wave bands Broadcast, Long Wave and Short Wave.
Details
Power type and voltage AC/DC-set / 200-250 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: AW3P - Decca, London
Shape Tablemodel, with any shape - general.
Notes AC/DC mains table radio in a portable case with a carrying handle. Similar to the Decca AW3 transportable table radio.
Literature/Schematics (1) Trader Service Sheet (suppl. of Wireless & El. Trader, etc.) (576)

Model page created by Howard Craven. See "Data change" for further contributors.
