- Country
- Great Britain (UK)
- Manufacturer / Brand
- Decca (Brand), Samuel (Barnett) & Sons, Ltd. & Decca Record Co., Ltd.; London
- Year
- 1939 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 364424
-
- alternative name: Decca Gramophone || Decca Radio
- Number of Tubes
- 5
- Valves / Tubes
- Main principle
- Superheterodyne (common); ZF/IF 465 kHz; 2 AF stage(s)
- Wave bands
- Broadcast, Long Wave and Short Wave.
- Power type and voltage
- Alternating Current supply (AC) / 200-240 Volt
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
- Material
- Leather / canvas / plastic - over other material
- from Radiomuseum.org

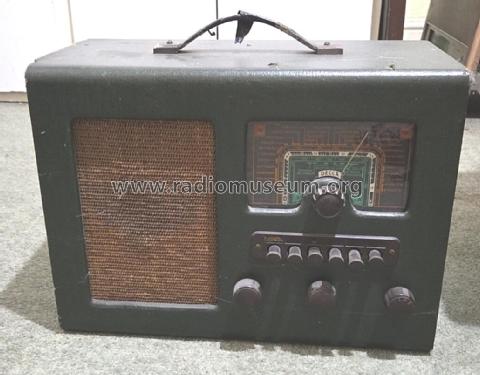

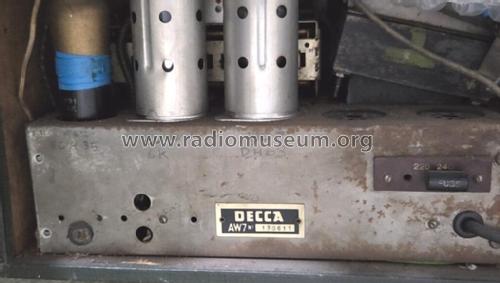

- Model: AW7 - Decca Brand, Samuel Barnett &
- Shape
- Tablemodel with Push Buttons.
- Notes
-
Pushbutton presets for LW and BC; SW coverage 19 – 49 metres. Connections for external pickup and loudspeaker.
- Author
- Model page created by Julian Hardstone. See "Data change" for further contributors.
