Carousel PR205

Decca (Brand), Samuel (Barnett) & Sons, Ltd. & Decca Record Co., Ltd.; London

Data
Forum
Pictures
Collections

  • Year
  • 1969 ??
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 331895
    • alternative name: Decca Gramophone || Decca Radio

 Technical Specifications

  • Number of Transistors
  • 10
  • Main principle
  • Superheterodyne (common); ZF/IF 470/10700 kHz
  • Wave bands
  • Broadcast, Long Wave, Short Wave plus FM or UHF.
  • Power type and voltage
  • Dry Batteries / C: 4 x 1.5 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
  • Material
  • Plastics (no bakelite or catalin)
  • from Radiomuseum.org
  • Model: Carousel PR205 - Decca Brand, Samuel Barnett &
  • Shape
  • Portable set > 8 inch (also usable without mains)
  • Notes

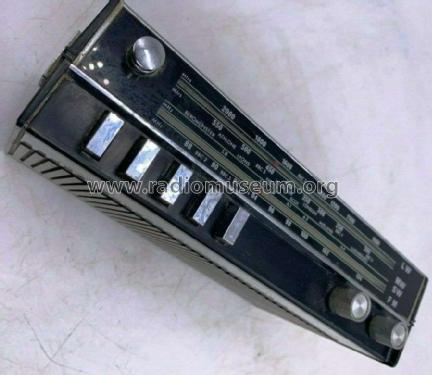

  • A 4 band AM/FM battery portable transistor radio housed in a plastic case with a wood effect front. With telescopic aerial, elliptical loudspeaker 68 x 106mm, earphone and DIN jacks.

    Wavebands
    Long Wave (LW) 150 to 300kHz
    Medium Wave (MW) 515 to 1620kHz
    Short Wave (SW) 5.9 to 6.2MHz
    F.M. (FM) 87.5 to 104MHz

    Made in Taiwan

  • Literature/Schematics (1)
  • - - Manufacturers Literature (Decca PR205 Carousel Service Data)
  • Author
  • Model page created by Howard Craven. See "Data change" for further contributors.
