• Country
• Great Britain (UK)

• Manufacturer / Brand
• Decca (Brand), Samuel (Barnett) & Sons, Ltd. & Decca Record Co., Ltd.; London

• Year
• 1958

• Category
• Sound/Video Recorder and/or Player

• Radiomuseum.org ID
• 148401

• • alternative name: Decca Gramophone || Decca Radio

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 4

• Valves / Tubes
• ECC83 ECL82 ECL82 EZ81

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Details
• Changer (Record changer)

• Power type and voltage
• Alternating Current supply (AC) / 200-250 Volt

• Loudspeaker
• 2 Loudspeakers

• Power out
• 2.5 W (unknown quality)

• Material
• Leather / canvas / plastic - over other material

• from Radiomuseum.org

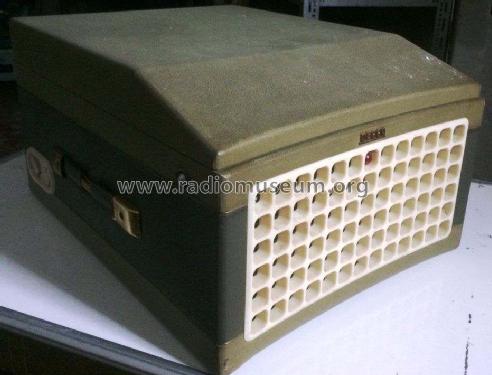

• Model: SG177 - Decca Brand, Samuel Barnett &

• Shape
• Tablemodel, with any shape - general.

• Notes

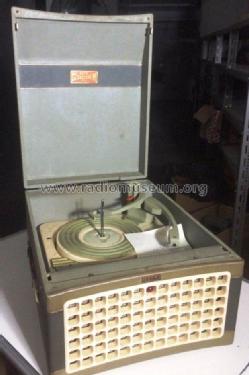

• Stereogram fitted with BSR Monarch UA12 changer, crystal pick-up. One internal speaker & one external speaker, size 6 x 8 inches. Price 46.5gns (£48.80 decimal) including Tax. Optional legs 2gns extra.

• Source of data
• -- Schematic

• Circuit diagram reference
• Radio and TV Servicing books (R&TVS) book

• Literature/Schematics (1)
• ERT Sheet 1157.

• Author
• Model page created by Keith Staines. See "Data change" for further contributors.
