Debonaire Deluxe TP60

Debonaire Deluxe TP60; Decca, London (ID = 1820953) Radio

Debonaire Deluxe TP60; Decca, London (ID = 1820954) Radio

Debonaire Deluxe TP60; Decca, London (ID = 1820955) Radio

Debonaire Deluxe TP60; Decca, London (ID = 1820956) Radio
Debonaire Deluxe TP60; Decca, London (ID = 1820950) Radio Debonaire Deluxe TP60; Decca, London (ID = 189976) Radio
Debonaire Deluxe TP60; Decca, London (ID = 1051156) Radio Debonaire Deluxe TP60; Decca, London (ID = 1051157) Radio
Debonaire Deluxe TP60; Decca, London (ID = 1820951) Radio Debonaire Deluxe TP60; Decca, London (ID = 1820952) Radio
Use red slider bar for more.
Debonaire Deluxe TP60; Decca, London (ID = 1820950) Radio

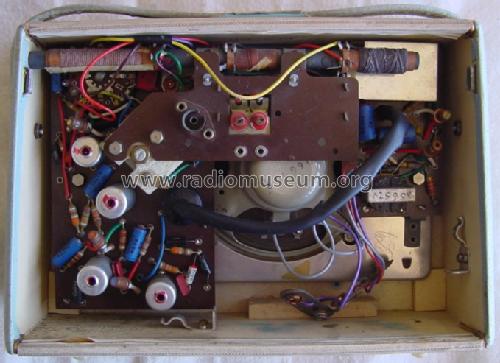

Decca, London: Debonaire Deluxe TP60 [Radio] ID = 1820950 933x861
Select picture or schematic to display from thumbnails on the right and click for download.
For model Debonaire Deluxe TP60, Decca, London

Country:  Great Britain (UK)
Manufacturer / Brand:  Decca, London
alternative name

Decca Gramophone || Decca Radio
Year: 1961 ? Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 6: OC44 OC45 OC45 OC81D OC81 OC81
Main principle Superheterodyne (common); ZF/IF 472 kHz; 2 AF stage(s)
Tuned circuits 7 AM circuit(s)
Wave bands Broadcast (MW) and Long Wave.
Details
Power type and voltage Dry Batteries / 2 × 6 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5 inch = 12.7 cm
Power out
from Radiomuseum.org Model: Debonaire Deluxe TP60 - Decca, London
Material Leather / canvas / plastic - over other material
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 10 x 7 x 3.75 inch / 254 x 178 x 95 mm
Notes

Based on TP44

TV style "Belling Lee" type coax connector for external aerial.

Warning: Fitted with PP9 style clips (9V) but actually uses 2 x PP1 6V packs

Changes from TP44 chassis (case is similar)

  • May use alternate STC transistors.
  • C15 = 12pF
  • R6 = 2.7K
  • Different speaker of same 25 Ohms impedance
Net weight (2.2 lb = 1 kg) 1.5 kg / 3 lb 4.9 oz (3.304 lb)
Source of data -- Original-techn. papers.
Mentioned in Decca Service Notes
Literature/Schematics (1) Radio And Television Servicing books (R&TVS) (p73 of 1962-63 and p66 of 1960-61)
Literature/Schematics (2) Trader Service Sheet (suppl. of Wireless & El. Trader, etc.) (1463 (for TP44))

Model page created by Howard Craven. See "Data change" for further contributors.
